Quick Details
-
Brand Name:
-
FHB Audio
-
Model Number:
-
DI22
-
Dimension (L x W x H):
-
125*33 *28
-
Model No.:
-
DI22
-
Product Name:
-
Dante adapter
-
Keyword:
-
Dante AVIO,audio interface
-
Application:
-
Conference Room
-
Function:
-
2 channels of analog transfer to Dante digital signal output
-
Channel:
-
2 Channels
-
Connector:
-
RJ45 /1 XLR-F RJ45 and 2 XLR-F
-
Power Supply:
-
Class 1 802.3af PoE
-
Certificate:
-
CE ROHS
-
Weight:
-
0.75KG
Quick Details
-
Power:
-
N/A
-
Frequency Range (Hz):
-
20-20KHz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FHB Audio
-
Model Number:
-
DI22
-
Dimension (L x W x H):
-
125*33 *28
-
Model No.:
-
DI22
-
Product Name:
-
Dante adapter
-
Keyword:
-
Dante AVIO,audio interface
-
Application:
-
Conference Room
-
Function:
-
2 channels of analog transfer to Dante digital signal output
-
Channel:
-
2 Channels
-
Connector:
-
RJ45 /1 XLR-F RJ45 and 2 XLR-F
-
Power Supply:
-
Class 1 802.3af PoE
-
Certificate:
-
CE ROHS
-
Weight:
-
0.75KG
Product Description

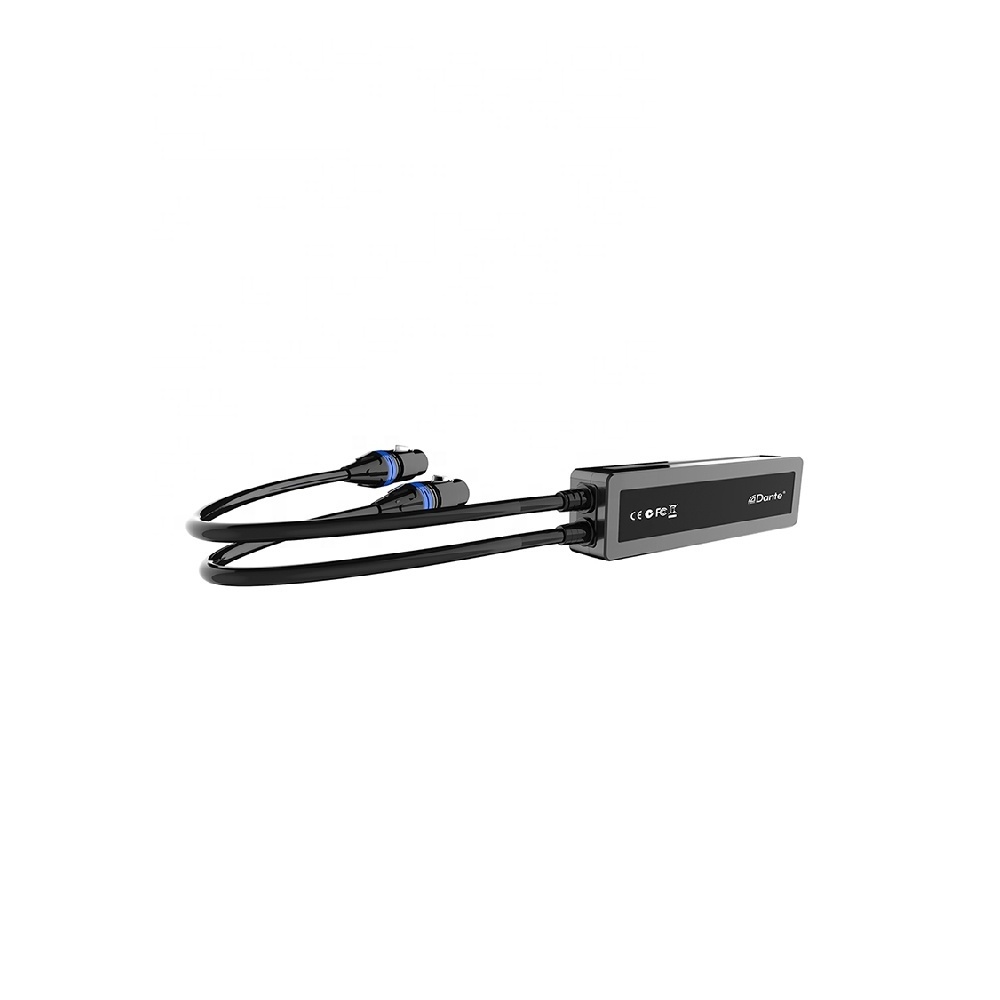

This series product is mainly composed of DI22 and DO22,DU22, products.

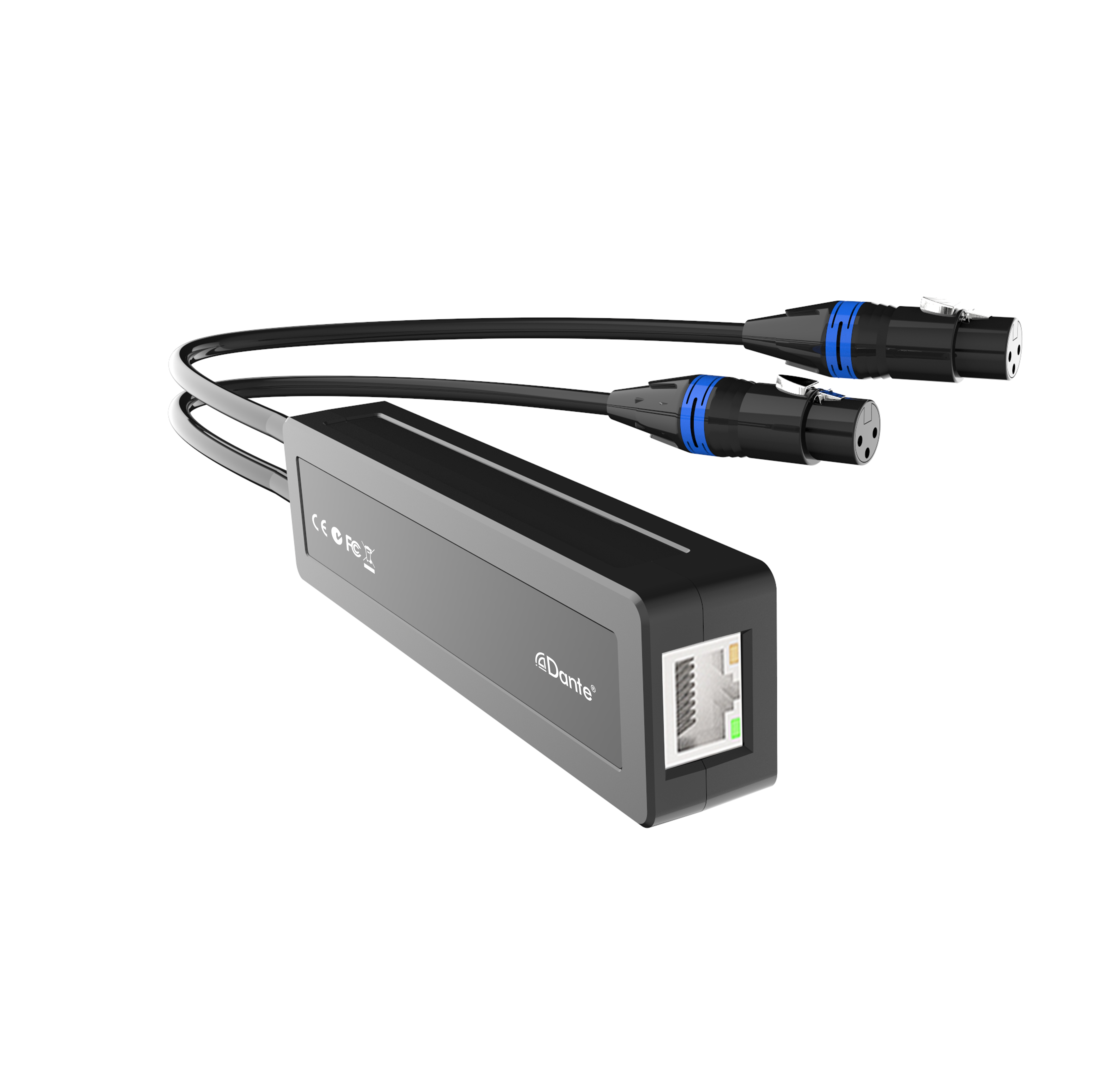

* DI22 supports 2 channels of analog signal input, transfer to Dante digital signal output;
* DO22 supports Dante digital signal input, transfer 2 analog signal output, Power supply for this product must be provided by
Ethernet (PoE) switch or router.

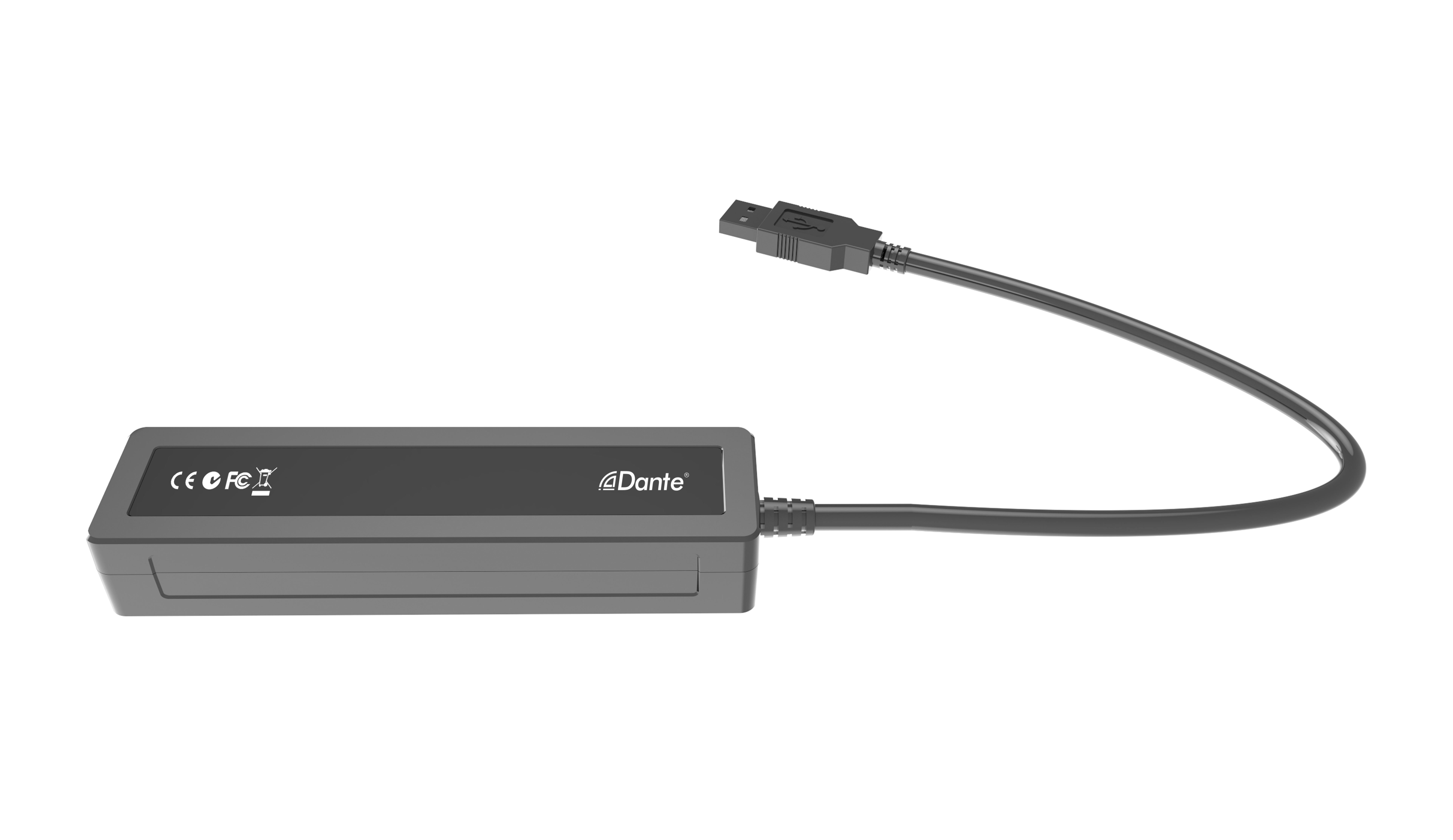

* DU22 uses USB power supply to support USB signal input and transfer to Dante signal output,and Dante signal input to USB
signal output of the dual channel signal conversion.
* DI22 supports 2 channels of analog signal input, transfer to Dante digital signal output;
* DO22 supports Dante digital signal input, transfer 2 analog signal output, Power supply for this product must be provided by
Ethernet (PoE) switch or router.
* DU22 uses USB power supply to support USB signal input and transfer to Dante signal output,and Dante signal input to USB
signal output of the dual channel signal conversion.
|
Function |
DI22 supports 2 channels of analog signal input, transfer to Dante digital signal output;
|
DO22 supports Dante digital signal input, transfer 2 analog signal output,
|
Support USB signal and Dante signal conversion
|
Support Dante and AES digital audio interface protocol transmission
|
||||
|
Channel
|
2 ch analog Inputs,
2 ch Dante output |
2 ch Dante intput
2 ch analog outputs, |
1 ch USB intput
1 ch Dante output |
-
|
||||
|
Maximum signal level (balanced)
|
+18dBu / +4dBu / 0dBu
|
+18dBu / +4dBu / 0dBu
|
-
|
-
|
||||
|
|
0dBV /-10dBV
|
0dBV /-10dBV
|
-
|
-
|
||||
|
Frequency response
|
20Hz to 20kHz (-/+0.5dB)
|
20Hz to 20kHz (-/+0.5dB)
|
-
|
-
|
||||
|
Bit depth
|
24 bit
|
24 bit
|
24 bit
|
24 bit
|
||||
|
Impedance
|
20k Ohm(Balanced);
10k Ohm(unbalanced) |
110 Ohm(Balanced)
|
-
|
-
|
||||
|
Dynamic Range
|
> 100dB
|
> 100dB
|
-
|
|
||||
|
SNR(Signal to Noise Ratio)
|
> 100dB
|
> 100dB
|
-
|
>135db
|
||||
|
THD
|
< 0.01%（+4dBu）
|
< 0.01%（+4dBu）
|
-
|
-
|
||||
|
Connector
|
RJ45 and 1 XLR-F
RJ45 and 2 XLR-F |
RJ45 and 1 XLR-M
RJ45 and 2 XLR-M |
RJ45 and USB A Type
|
RJ45, 1 XLR-M, 1 XLR-F
|
||||
|
Power Supply
|
Class 1 802.3af PoE
|
Class 1 802.3af PoE
|
USB
|
-
|
||||
|
Sampling rate
|
44.1、48、96 kHz
|
44.1、48、96 kHz
|
48 kHz
|
48 kHz
|
||||
|
Latency
|
Depending on the configuration on the device or network, 1 ms(default)
|
|
|
|
||||
|
Network transmission
|
Dante IP AES67 RTP audio
|
|
|
|
||||
|
USB
|
-
|
-
|
USB 2.0
|
-
|
||||
|
Device Information
|
|
|
|
|
||||
|
Weight
|
Gross Weight :0.75KG
|
|
|
|
||||
|
Dimension
|
4.92 x 1.30 x 1.10 inch/ 125 x 33 x 28 mm (L x W x H)
|
|
|
|
||||
|
Power consumption
|
2 Watts
|
|
|
|
||||
|
Operation temperature
|
0~50OC [32~122F]
|
|
|
|
||||
|
Storage temperature
|
-20~60OC [-4~140F]
|
|
|
|
||||
|
Relative humidity
|
20~90% RH [no condensation]
|
|
|
|
||||
Main Features
:
* Compact design, easy to use, support hot plug.
* Conversion between analog audio signals and Dante digital audio signals is easy and free.
* Built-in 2 input or 2 output audio channels.
* Extend audio, control, Ethernet, and power with a reasonably priced cable.
* One network cable instead of multiple analog or multi-core cables, it is economical, efficient and
* Extend uncompressed high quality audio signals with near-zero delay.
* Conversion between analog audio signals and Dante digital audio signals is easy and free.
* Built-in 2 input or 2 output audio channels.
* Extend audio, control, Ethernet, and power with a reasonably priced cable.
* One network cable instead of multiple analog or multi-core cables, it is economical, efficient and
* Extend uncompressed high quality audio signals with near-zero delay.
Recommend Products
Application
The Dante AVIO Adapter
mainly use at conference application.
