Quick Details
-
Model Number:
-
KW181A
-
Dimension:
-
355*190*110MM
-
Storage:
-
NO
-
SNR:
-
>103dB
-
Output Power:
-
1000W@4OHM
-
Format:
-
NO
-
Stereo power:
-
1000W
-
Output circuitry:
-
Class D
-
AC power input:
-
100-240 VAC; 50 to 60 HZ
-
Cooling:
-
50 mm variable speed fan
-
input impedance 1:
-
XLR/ 1/4": 40 k ohm balanced / 20 k ohm unbleached
-
RCA:
-
10 K ohm
-
input impedance 2:
-
XLR/ 1/4" MIC mode: 2260 ohm balanced
-
Net Weight:
-
2.74kg
-
dimension:
-
35.5*19*11(cm)
-
Certification:
-
CE/ROHS
Quick Details
-
Warranty:
-
3months-1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WYW
-
Model Number:
-
KW181A
-
Dimension:
-
355*190*110MM
-
Storage:
-
NO
-
SNR:
-
>103dB
-
Output Power:
-
1000W@4OHM
-
Format:
-
NO
-
Stereo power:
-
1000W
-
Output circuitry:
-
Class D
-
AC power input:
-
100-240 VAC; 50 to 60 HZ
-
Cooling:
-
50 mm variable speed fan
-
input impedance 1:
-
XLR/ 1/4": 40 k ohm balanced / 20 k ohm unbleached
-
RCA:
-
10 K ohm
-
input impedance 2:
-
XLR/ 1/4" MIC mode: 2260 ohm balanced
-
Net Weight:
-
2.74kg
-
dimension:
-
35.5*19*11(cm)
-
Certification:
-
CE/ROHS
- The KW Series features advanced DSP (digital signal processing) circuitry that performs many functions.
- Some functions are set at the design/production level and are not user accessible.
- These functions include crossovers, time alignment, limiting and protection, thermal management and a number of proprietary features.
- The power module has designed exclusive DSP functions that greatly enhance the capabilities and performance of the KW Series systems.
| Power Output 2 |
1000 W continuous Class D
(1000 W LF) 2000 W peak |
| Input Impedance | XLR / ¼": 40 kΩ balanced / 20 kΩ unbalanced |

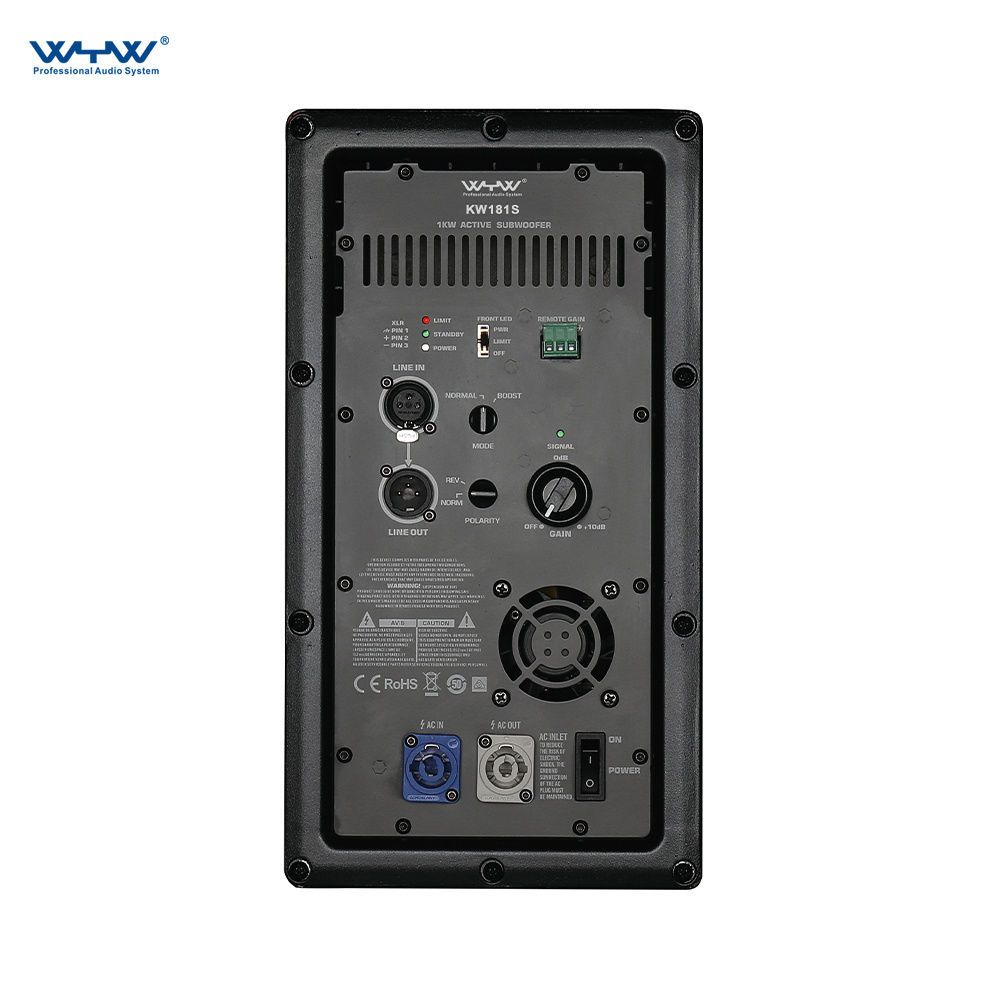

| Controls | Power, Mode (Normal/BOOST), Polarity (Normal/Reverse), Front LED (Pwr/Limit/Off), Gain |
| Indicators | Power, Signal, Standby, Limit |
| Connectors | Balanced female XLR line level input, Balanced male XLR full range line level out, Remote attenuation control, Locking powerCON power connector AC In, Locking powerCON® power connector AC Out |
| Cooling | On demand, 50 mm variable speed fan |
| Amplifier Protection | Thermal limiting, output overcurrent, overtemperature muting, GuardRail™ |
| Transducer Protection | Thermal limiting, excursion limiting |
| AC Power Input | Universal power supply 100–240 VAC, 50 to 60 Hz |
|
AC Power Consumption
(1/8 of full power) |
100 VAC, 2.3 A
120 VAC, 2.01 A 230 VAC, 1.13 A |
