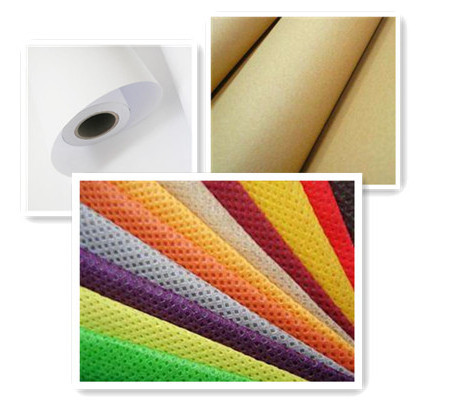

Not only Non-woven fabric, TYM series machine suit for material like, cardboard, kraft and
multiple kinds of plastic roller.
Contact us For product pricing, customization, or other inquiries:
Contact Us
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
Customization
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SHIWEI
-
Model Number:
-
TYM 1300
-
Dimensions(L*W*H):
-
5200*2000*1900 MM
-
Weight:
-
6000 KG
-
Product name:
-

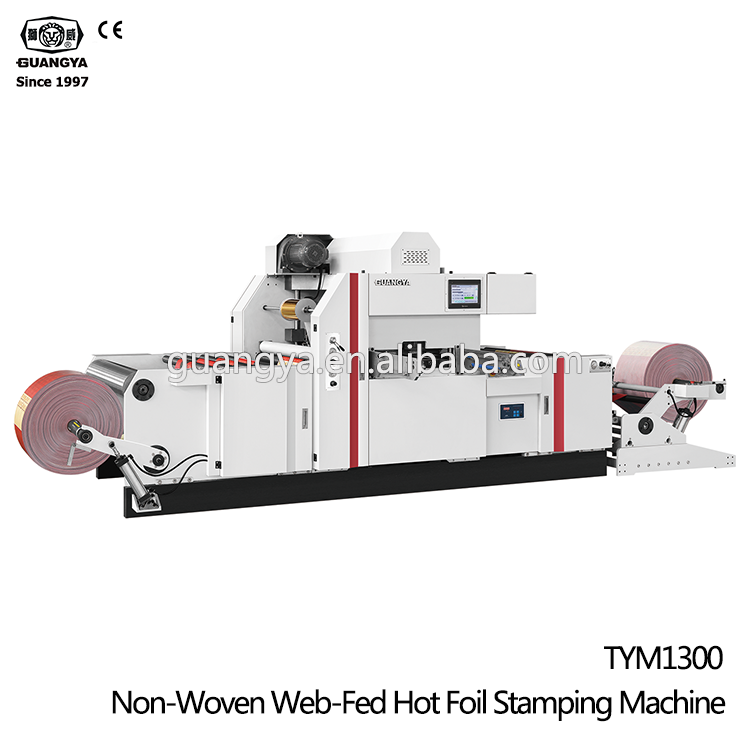

TYM 1300 web-fed hot foil stamping machine
-
Function:
-
hot stamping, die cutting, embossing, bending
-
Application:
-
hot foil stamping
-
Machine type:
-
hot foil stamping machine
-
Color:
-
grey
-
Raw material:
-
high code iron cast
-
Max. paper sizes:
-
1280*600 MM
-
Foil feeding shafts number:
-
Longitudinal 2, transversal 2
-
Individual zones of heating plate:
-
12 zones
-
Certification:
-
CE
Quick Details
-
Condition:
-
New
-
Plate Type:
-
hot stamping machine
-
Color & Page:
-
Multicolor
-
Voltage:
-
Customization
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SHIWEI
-
Model Number:
-
TYM 1300
-
Dimensions(L*W*H):
-
5200*2000*1900 MM
-
Weight:
-
6000 KG
-
Product name:
-
TYM 1300 web-fed hot foil stamping machine
-
Function:
-
hot stamping, die cutting, embossing, bending
-
Application:
-
hot foil stamping
-
Machine type:
-
hot foil stamping machine
-
Color:
-
grey
-
Raw material:
-
high code iron cast
-
Max. paper sizes:
-
1280*600 MM
-
Foil feeding shafts number:
-
Longitudinal 2, transversal 2
-
Individual zones of heating plate:
-
12 zones
-
Certification:
-
CE
Product Description
|
Max. paper diameter
|
800 MM
|
|
Max. paper feeding kength
|
600 - 1200 MM
|
|
Max. effective area
|
1280*600 MM
|
|
Max. stamping speed
|
3200 Stroke / H
|
|
Foil pulling shaft
|
Longitudinal 2, Transversal 2
|
|
Max. working fouce
|
120 T
|
|
Individual zones of heating plate
|
12 zones, each zone 2 KW
|
|
Main motor power
|
3.7 KW
|
|
Feeding motor
|
1.5 KW
|
|
Delivery motor
|
2.2 KW
|
|
Machine weight
|
6000 KG
|
|
Overall machine dimensions
|
5200*2000*1900 MM
|
Applied materials
Not only hot foil stamping, but also creasing
,
embossing functions are available om this machine. Suit for box, carton, paper bag and non-woven bag producing.

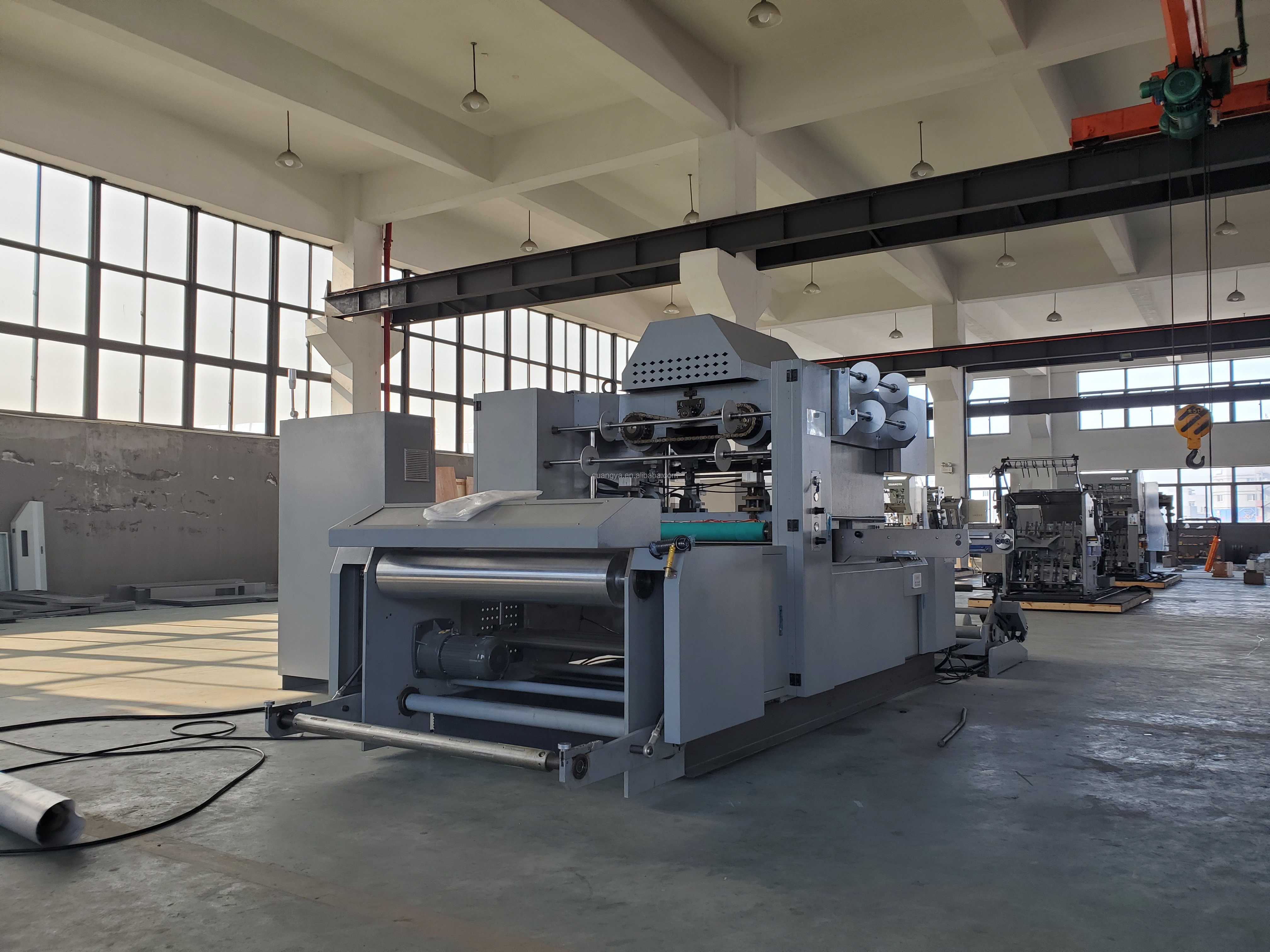

Detailed Images
Thanks to the high code iron cast, our machines got 25% to 28% more stronger than most normal machines in the market which make the machines life longer. It saves at least 20% time for changing lubricating oil with the automatic lube oil pump and reduce the probability of loss due to lack of lubrication.
Packing&Shipping
Deep clear
Vacuum Packing
Container loading
We clean the equipment before packaging, then use film packaging to prevent secondary contamination, and finally use a fumigation high-strength wooden box. In order to provide maximum protection for the equipment.
Company Introduction
Before “GUANGYA”, its founder Mr. Chen Shao Rong had been working in platen die cutting machine manufacturing for more than 10 years as engineer and designer. Then at 1996, together with his friends, the “GUANGYA MACHINERY CO., LTD.” was established in a very small plant. And they start producing ML series die cutting machine. At the second year, 1997. The TYMC series hot foil stamping machine start its manufacturing. The new century brings new challenges. In the next coming year, the TL series, the LK series and the TYM series automatic die cutting machine and hot foil stamping machine becoming very important product line of “GUANGYA”. “GUANGYA” also becoming one of the most famous manufacturers in China for post-press equipment.
The year 2015, the new plant of “GUANGYA” put into use, the developing of “GUANGYA” meeting a new stage. We “GUANGYA” people are ready for new challenge.
FAQ
What product you produce?
we are manufacturer of die cutting machines and hot foil stamping machines. Our products include full automatic / semi automatic type. Suit for sheet material and roll material.
Where is your factory location?
transportation nearby.
Airport: Wenzhou Air port.
Railway Station: Ruian Railway Station, Aojiang Railway Station
Manufacturer or trading company?
we have been worked on the industry of die cutting and stamping machine as a manufacturer for more than 20 years and from now on, we would carry on to offer products with good quality to our customers as what we had done in the last two decades.
How about the warranty policy of your company?
1. we offer our customer brand new "SHIWEI" & "GUANGYA" machines.
2. every brand new machine from us with one year warranty.
3. after one year warranty, the machine still have whole life after-sales service and spare parts supporting.
Why choose us?
focus on Die Cutting and hot foil stamping machine since the year 1995, nowadays, our machines running in more than 80 countries.
We know much about what quality means, we care more about your feeling when using machine.
