Quick Details
-
Model Number:
-
E36B
-
Specail features:
-
Vandal-proof/explosion-proof
-
Resolution:
-
700tvl
-
Zoom:
-
36x/12x
-
View distance:
-
100m
-
Detect distance:
-
60m
-
Automatically tilt:
-
Up to 45°; down to 90°
-
Size of the screen:
-
5.7" TFT color Monitor
-
Memory card:
-
4G(optional to 8G)
-
Inspection ranges:
-
200mm-2000mm
-
Warranty:
-
1 year
Quick Details
-
Special Features:
-
Waterproof / Weatherproof
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Elook
-
Model Number:
-
E36B
-
Specail features:
-
Vandal-proof/explosion-proof
-
Resolution:
-
700tvl
-
Zoom:
-
36x/12x
-
View distance:
-
100m
-
Detect distance:
-
60m
-
Automatically tilt:
-
Up to 45°; down to 90°
-
Size of the screen:
-
5.7" TFT color Monitor
-
Memory card:
-
4G(optional to 8G)
-
Inspection ranges:
-
200mm-2000mm
-
Warranty:
-
1 year

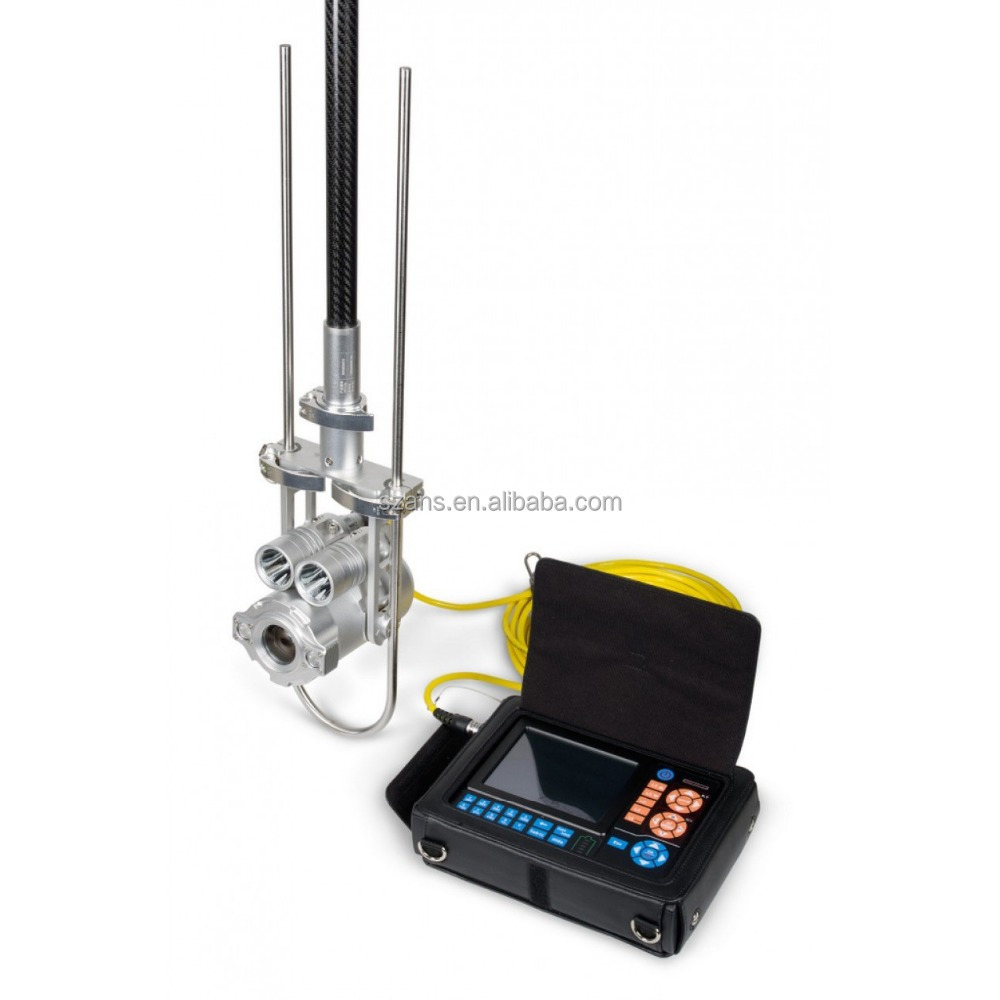

Chinese manufacturer inspection camera/handhold camera/endoscope for shower
Product Description
- Pipe Inspection is mainly used for industrial containers and pipe inspection, with zoom video, optional laser ranging, wireless transmission and other specialized functions. Apply to large-scale tanks, municipal drains inspection, tunnels, and … situations where ….record keeping are required.
- It uses static barotropy for protection and can be used in where there is risk of exposure elements.
- The device is rated for up to 10M (10 meters) of immersion.
- The device is equipped with powerful lights and portable power supply for operator’s ease of operation.
- The length of telescopic rod is 6.7M, with option to 11M (11 meters).
| Application | The pipe inspection camera is mainly used for pipe inspection,large-scale tank inspection,drains inspection,tunnels inspection | |
| Model | E36B (Old model:SD-1000IIv3.0) | |
| Camera | CCD Type | 1/4 Ex-view HAD CCD |
| Horizontal resolution | 700TVL | |
| Optical system | 3.9-90mm | |
| Zoom | 412=36*optical;12*digital | |
| View distance | 80-100m | |
| Detection distance | 60m | |
| Tilt automaticlly | Up30;down:180° | |
| LED Lights | 4LEDS(Dimmer control) | 4pcs,4*10w |
| Projection angle | 30°*4 | |
| Display&Storage system | Size of the screen | 5.6" TFT Monitor |
| Brightness | 500cd/m2 | |
| Resolution | 640*480 | |
| Video format | MPEG4/AVI | |
| Picture format | MPEG | |
| Memory card | 2G(optional to 16G) | |
| USB interface | USB output | |
| Power supply | Battery | DC12V 13000mah |
| Working time | Standby(LED off):12hours; | |
| In operation(LED on):4hours | ||
| Telescopicrod | Length | 6m(optional to 12 meters) |
