Quick Details
-
Loading Capacity:
-
2000KG/PLATFORM
-
drieve mode:
-
hydraulic cylinder
-
platform size:
-
5314*1954mm
-
Lifting Height(mm):
-
1700mm+2000mm
-
Lifting capacity:
-
2000kg/platform
-
Power Supply/Motor Capacity:
-
110V/220V/380V,50/60Hz,3Ph
-
Parking space:
-
6
-
shipping load:
-
13 units/ 40' container
-
other lock release:
-
electric lock release
-
Power Supply:
-
2.2Kw/4.0Kw
-
rise/drop time:
-
50 S/ 40 S
Quick Details
-
Place of Origin:
-
China
-
Model Number:
-
PEP54/3700D
-
Warranty:
-
24 Months
-
Loading Capacity:
-
2000KG/PLATFORM
-
drieve mode:
-
hydraulic cylinder
-
platform size:
-
5314*1954mm
-
Lifting Height(mm):
-
1700mm+2000mm
-
Lifting capacity:
-
2000kg/platform
-
Power Supply/Motor Capacity:
-
110V/220V/380V,50/60Hz,3Ph
-
Parking space:
-
6
-
shipping load:
-
13 units/ 40' container
-
other lock release:
-
electric lock release
-
Power Supply:
-
2.2Kw/4.0Kw
-
rise/drop time:
-
50 S/ 40 S
Product Description

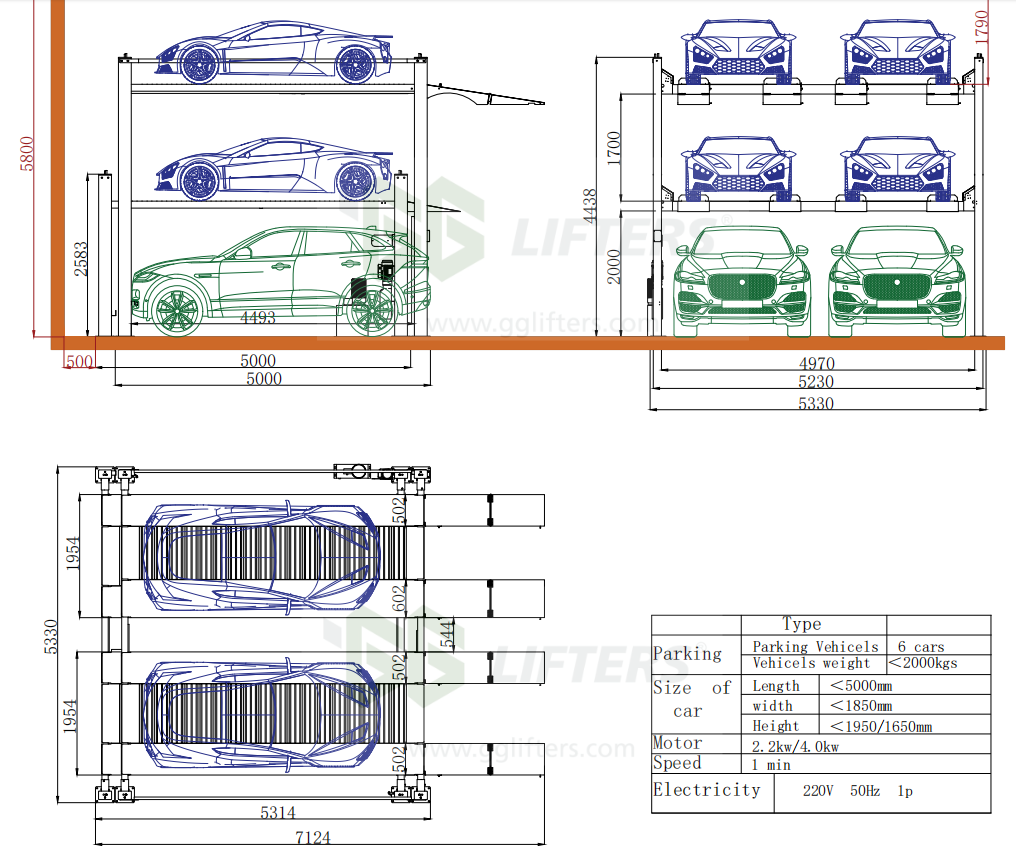

1.2 separated double wide 4 post car parking lifts installed together.
2.Hydraulic driven cylinder with wire rope lifting system through sheaves.
3.Double safety locks in each post: first are one piece adjustable safety lock ladder and the other will be activated automatically in case of steel wire rupture.
4.Foldable ramps suitable for sport cars and occupy less space.
5.Automatic locking system of the latches inside ladders while electromagnetic lock release through push button on operation box.
6.Electric control panel& hydraulic power unit are fixed on the front & right column.
7.Separate Operation box for each lift, will be fixed on the front right post.
8.Wheel stoppers on upper platform.
9.Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated.
2.Hydraulic driven cylinder with wire rope lifting system through sheaves.
3.Double safety locks in each post: first are one piece adjustable safety lock ladder and the other will be activated automatically in case of steel wire rupture.
4.Foldable ramps suitable for sport cars and occupy less space.
5.Automatic locking system of the latches inside ladders while electromagnetic lock release through push button on operation box.
6.Electric control panel& hydraulic power unit are fixed on the front & right column.
7.Separate Operation box for each lift, will be fixed on the front right post.
8.Wheel stoppers on upper platform.
9.Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated.
