Quick Details
-
Brand Name:
-
HIPOWER
-
Model Number:
-

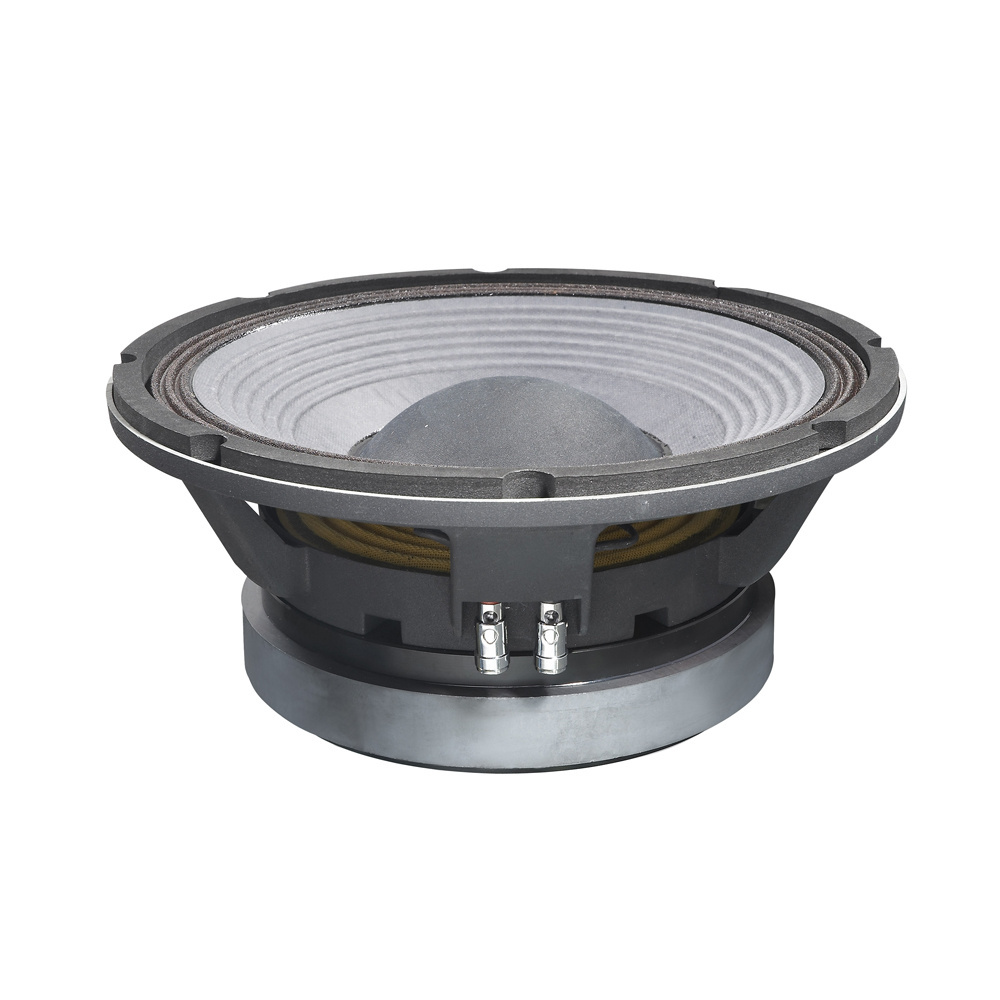

L12/8402 SUB
-
Dimension (L x W x H):
-
12 INCH
-
Magnet Material:
-
Ceramic
-
Basket Material:
-
Cast Aluminum
-
Usage:
-
Stage speaker
-
Amplification Type:
-
Passive speaker
-
Impedance:
-
8 ohm
-
Nominal Power handling:
-
450 watts
-
Sensitivity(lw/lm):
-
95 dB
-
Frequency Range:
-
48.7-1.8k Hz
-
Voice Coil Diameter:
-
100mm/4inch
-
Voice Coil Material:
-
copper
Quick Details
-
Power:
-
450W
-
Frequency Range (Hz):
-
48.7-1.8k Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HIPOWER
-
Model Number:
-
L12/8402 SUB
-
Dimension (L x W x H):
-
12 INCH
-
Magnet Material:
-
Ceramic
-
Basket Material:
-
Cast Aluminum
-
Usage:
-
Stage speaker
-
Amplification Type:
-
Passive speaker
-
Impedance:
-
8 ohm
-
Nominal Power handling:
-
450 watts
-
Sensitivity(lw/lm):
-
95 dB
-
Frequency Range:
-
48.7-1.8k Hz
-
Voice Coil Diameter:
-
100mm/4inch
-
Voice Coil Material:
-
copper
| General Specifications | ||
| Nominal Diameter | 300/12 | mm/inch |
| Rated Impedance | 8 | ohm |
| Nominal Power handling 1 | 450 | Watts |
| Program Power 2 | 900 | Watts |
| Sensitivity(lw/lm) 3 | 95 | dB |
| Frequency Range 4 | 48.7-1.8k | Hz |
| Minimum Impedance(Zmin) | 6.8 | ohm |
| Voice Coil Diameter | 100/4 | mm/inch |
| Voice Coil Material | copper | |
| Voice Coil Winding Depth | 23 | mm |
| Number of layers | 2 | |
| Magnet gap depth | 12 | mm |
| Surround Shape | Triple-roll | |
| Basket | Cast Aluminum | |
| Flux Density | 1.1 | T |
| Magnet Material/Mass | Ceramic | |
| Thiele-Small parameters | |||
| Resonance frequency | Fs | 48.7 | Hz |
| DC resistance | Re | 5.4 | ohm |
| Mechanical factor | Qms | 14.2 | |
| Electrical factor | Qes | 0.27 | |
| Total factor | Qts | 0.26 | |
| Mechanical compliance | Cms | 0.11 | mm/N |
|
Mechanical resistance
of suspension losses |
Rms | 2.1 | mech-ohm |
| Effective Moving Mass | Mms | 97 | gr |
| Half-space efficiency | Eff | 2.0 | % |
| BL Factor | BL | 24.5 | T.m |
| Equivalent Cas air load | Vas | 49 | liters |
| Effective piston area | Sd | 0.056 | m2 |
| Max.linear excursion | Xmax | 8 | mm |
| Voice-coil inductance | LelK | 1.86 | mH |
| Mounting Information | ||
| Overall Diameter | 313 | mm |
| Bolt Circle Diameter | 294 | mm |
| Bolt Hole Diameter | 6.5 | mm |
| Baffle Cutout Diameter | 285 | mm |
| Overall Depth | 125 | mm |
| Net Weight | 11.2 | kg |
