Quick Details
-
Battery:
-
Lithium 72V200AH
-
Controller:
-
72V/400A
-
Charger:
-
Smart Charger, 72V/25A
-
Autonomy(Range):
-
100-120kms
-
Max. Speed:
-
32km/h
-
Climbing Ability:
-
20%-25%
-
Brake:
-
4 wheel hydraulic brake with vacuum booster and park brake
-
Suspension:
-
Front Independent suspension
-
Description:
-

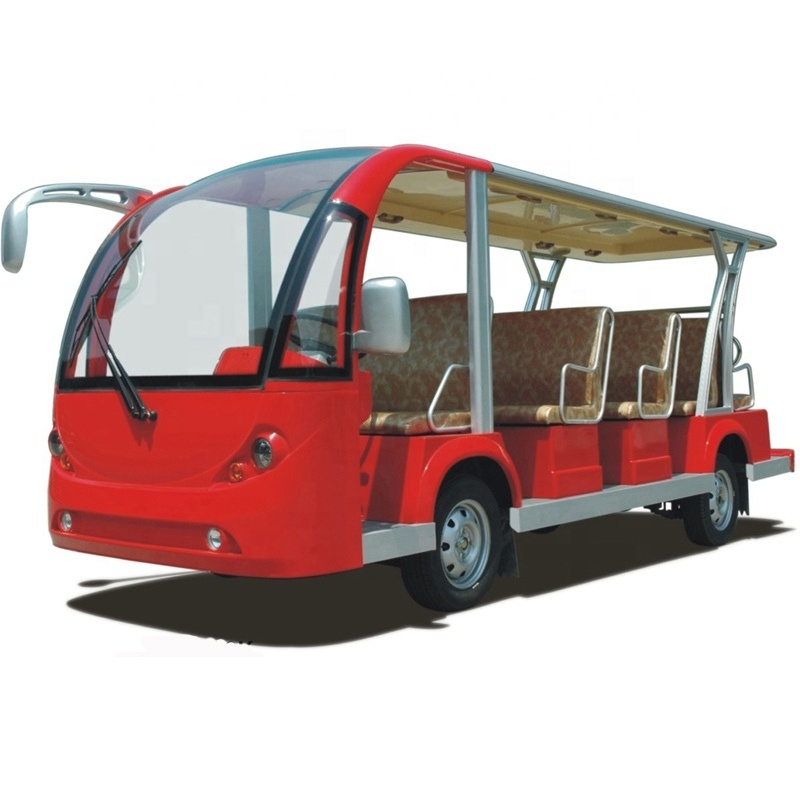

Lithium Battery Powered 14 Seats Electric Sightseeing Shuttle Bus
Quick Details
-
Brand Name:
-
Lexsong
-
Place of Origin:
-
Jiangsu, China
-
Motor:
-
72V7.5KW AC
-
Battery:
-
Lithium 72V200AH
-
Controller:
-
72V/400A
-
Charger:
-
Smart Charger, 72V/25A
-
Autonomy(Range):
-
100-120kms
-
Max. Speed:
-
32km/h
-
Climbing Ability:
-
20%-25%
-
Brake:
-
4 wheel hydraulic brake with vacuum booster and park brake
-
Suspension:
-
Front Independent suspension
-
Description:
-
Lithium Battery Powered 14 Seats Electric Sightseeing Shuttle Bus
Product Description
Product Application
|
SPECIFICATIONS OF 14 Seats Lithium Battery Powered Electric Sightseeing Personal Shuttle Bus
|
|
|
|
|||
|
Key Components
|
Controller
|
72V/400A, APP adjusted
|
|
|||
|
|
Motor
|
7.5KW AC motor
|
|
|||
|
|
Battery
|
72V210AH Lithium Battery
|
|
|||
|
Performance
and
Dimensions
|
Passenger Capacity
|
14
|
|
|||
|
|
Range (Loaded) *
|
100-120kms
|
|
|||
|
|
Max.speed
|
32km/h
|
|
|||
|
|
Min. Turning Radius
|
5.35m
|
|
|||
|
|
Max. Gradeability
|
20%-25%
|
|
|||
|
|
Max. Loading Weight
|
1120kgs
|
|
|||
|
|
Net Weight
|
1270kgs
|
|
|||
|
|
Overall Dimensions
|
5100X1535X2070mm
|
|
|||
|
Body and Frame
|
|
|
|
|||
|
Frame (Chassis)
|
Welded steel framework, with anti-rust treatment of sand blasting and painting
|
|
|
|||
|
Body and Roof
|
FRP body, seat pot and roof
|
|
|
|||
|
Windshield
|
Laminated glass, with wiper
|
|
|
|||
|
Roof supports
|
Aluminum
|
|
|
|||
|
Seat
|
High back seat with head rest for driver, bench seat for passengers
|
|
|
|||
|
Floor
|
Anti-slip rubber floor mat
|
|
|
|||
|
Dashboard
|
FRP, with F/R Switch, Emergency Stop Switch, Digital Meter
|
|
|
|||
|
Side trim
|
Aluminum alloy
|
|
|
|||
|
Sider mirror
|
2pcs, one long arm, one small foldable one
|
|
|
|||
|
Electric System
|
|
|
|
|||
|
Lighting system and horn
|
2 headlights, 2 front turn signals, 2 brake light, 2 rear turn signal, 1 reverse light, 1 rear fog light, with voltage reducer (converting from 48V to 12V), electric horn.
|
|
|
|||
|
Digital Meter
|
With battery power meter, amperemeter, voltmeter, speedometer, odometer, time, F/R indicator, turn signal indicator
|
|
|
|||
|
Audio system
|
CD player and radio, with 4 speakers
|
|
|
|||
|
Combination switch
|
Light switch, wiper switch, horn switch
|
|
|
|||
|
Backup Buzzer
|
12V
|
|
|
|||
|
Charger
|
Smart charger, input 110V-240V~50Hz-60Hz, output 72V, 25A
|
|
|
|||
|
Steering, Brake, Transmission and Suspension
|
|
|
|
|||
|
Steering System
|
Single-stage rack and pinion steering system, automatic rocker compensating function, with EPS
|
|
|
|||
|
Brake system
|
4 wheel hydraulic drum brake with vacuum booster, hand park brake
|
|
|
|||
|
Accelerator
|
Stepless speed change
|
|
|
|||
|
Driving mode
|
Rear axle two stage deceleration, motor direct driving
|
|
|
|||
|
Rear axle
|
Integrated
|
|
|
|||
|
Suspension system
|
Front independent suspension and rear plate leaf spring + cylinder hydraulic shock absorber
|
|
|
|||
|
Wheel & Tyre
|
4J*13 Steel rim & 165R13C 8PR Tire
|
|
|
|||
Packing & Delivery
|
Packaging
|
|
|
||
|
Container Size
|
Assembled
|
Disassembled
|
||
|
20'ft Container
|
1
|
2
|
||
|
40'GP Container
|
2
|
4
|
||
|
40'HQ Container
|
2
|
4
|
||
|
Packing Method
|

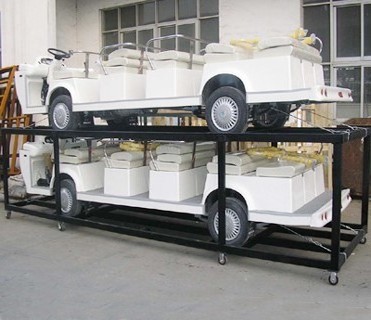

When assembled, it's nude packing; when disassembled, it's packed in steel crate as left image shows
|
|
||
Certifications
Our Company
More than 12 years experiencein electric vehicle business
Our electric vehicles have been exported to more than 40 countries around the world
Our Service
12+ Years EV Expertise
Life-time Spare Parts Supplies
One Year Warranty
Flexible Payment Terms
18x7x360 Technical Support
Main Categories
FAQ
Q1. Do you accept to customize the vehicles as per our special request?
Answer: Yes, we customize vehicles as per customer's speical request with reasonable cost and lead time, as long as the customization is not related to the chassis modification.
Q2.
What is your warranty term?
Answer: We provide 1 year warranty. And for any failed part under warranty, if it can be repaired at your side and the repair cost is lower than the valve of the part, we will cover the repair cost; otherwise, we will send replacements and cover the freight cost if any.
Q3. Do you provide after service spare parts?
Answer: Yes, we provide all the spare parts to our vehicles, even 5 years after we stop the production of the vehicle. For your easier working to select the spare parts, we also supply parts manual.
Q4. Do you provide technical support?
Answer: Yes, we provide technical support by email and phone. If necessary, we can also send our engineer to your place.
Q5. Do you provide vehicle assembly service if we buy the vehicles in SKD or CKD way?
Answer: When the vehicle is in SKD way, the reassembly is just bolt and nut work, it is not difficult at all. Unless you have the assembly capability, we do not sell the vehicles in CKD way. If you do have bigger volume, we can send our people to give instructions.
Q6. Do you accept OEM order?
Answer: Yes, as long as the order quantity is reasonable (yearly 300-500 units), we will accept.
Q7. What are your terms to be your agent/dealer in my country?
Answer: We have several basic requirements, firstly you shall be in electric vehicle business for some time; secondly, you shall have the capability to provide after service to your customers; thirdly, you shall have the capability to order and sell reasonable volume of electric vehicles.
Q8: What is your payment term?
Answer: For new customers, our typical payment term is ‘T/T 30% deposit against order confirmation, T/T 70% before container loading’. Irrecoverable L/C at sight is also acceptable. For old customers, our payment term can be more flexiable. Please contact us for more information.
