Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ACM
-
Model Number:
-
ACM-K9A
-
Product name::
-
Door Safety Fingerprint Recognition Device Touch Exit Button
-
Input::
-
DC12V
-
Dimensions::
-
86Lx50Wx20H(mm)
-
Output Contact::
-
NO/NC/COM
-
Detection range::
-
0.1 ~ 10 cm
-
Operating temp::
-
-20℃~+55℃(14-131F)
-
Suitable Humidity::
-
0-95% (relative humidity)
-
Suitable for Door::
-
Hollow Door
-
Weight::
-
0.15kg
-
Application::
-
Gate/Door/Exit/Automation control
-
Certification:
-
ce
Quick Details
-
Protection Level:
-
class I
-
Max. Current:
-
12V
-
Max. Voltage:
-
3A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ACM
-
Model Number:
-
ACM-K9A
-
Product name::
-
Door Safety Fingerprint Recognition Device Touch Exit Button
-
Input::
-
DC12V
-
Dimensions::
-
86Lx50Wx20H(mm)
-
Output Contact::
-
NO/NC/COM
-
Detection range::
-
0.1 ~ 10 cm
-
Operating temp::
-
-20℃~+55℃(14-131F)
-
Suitable Humidity::
-
0-95% (relative humidity)
-
Suitable for Door::
-
Hollow Door
-
Weight::
-
0.15kg
-
Application::
-
Gate/Door/Exit/Automation control
-
Certification:
-
ce
Product Description
DC 12V Door Safety Fingerprint Recognition Device Touch Exit Button Infrared Sensor Door Switch for Door Access Control System
|
Product Parameter
|
Parameter Description
|
|
|
||
|
Dimensions
|
86*50*20mm
|
|
|
||
|
Input
|
DC12V
|
|
|
||
|
Contact Rating
|
12-28V,3A
|
|
|
||
|
Output Contact
|
NO/NC/COM
|
|
|
||
|
Mechanical Life
|
500000 tested
|
|
|
||
|
Suitable for Door
|
Hollow Door
|
|
|
||
|
Operating temp
|
-20℃~+55℃(14-131F)
|
|
|
||
|
Suitable Humidity
|
0-95% (relative humidity)
|
|
|
||
|
Detection range
|
0.1-10cm
|
|
|
||
|
LED Indicator
|
White LED indicator: Power OFF
Blue LED indicator: Power ON(standby) Red LED indicator: Power ON(sensation) |
|
|
||
|
Weight
|
0.15kg
|
|
|
||
access control exit button Advantage:

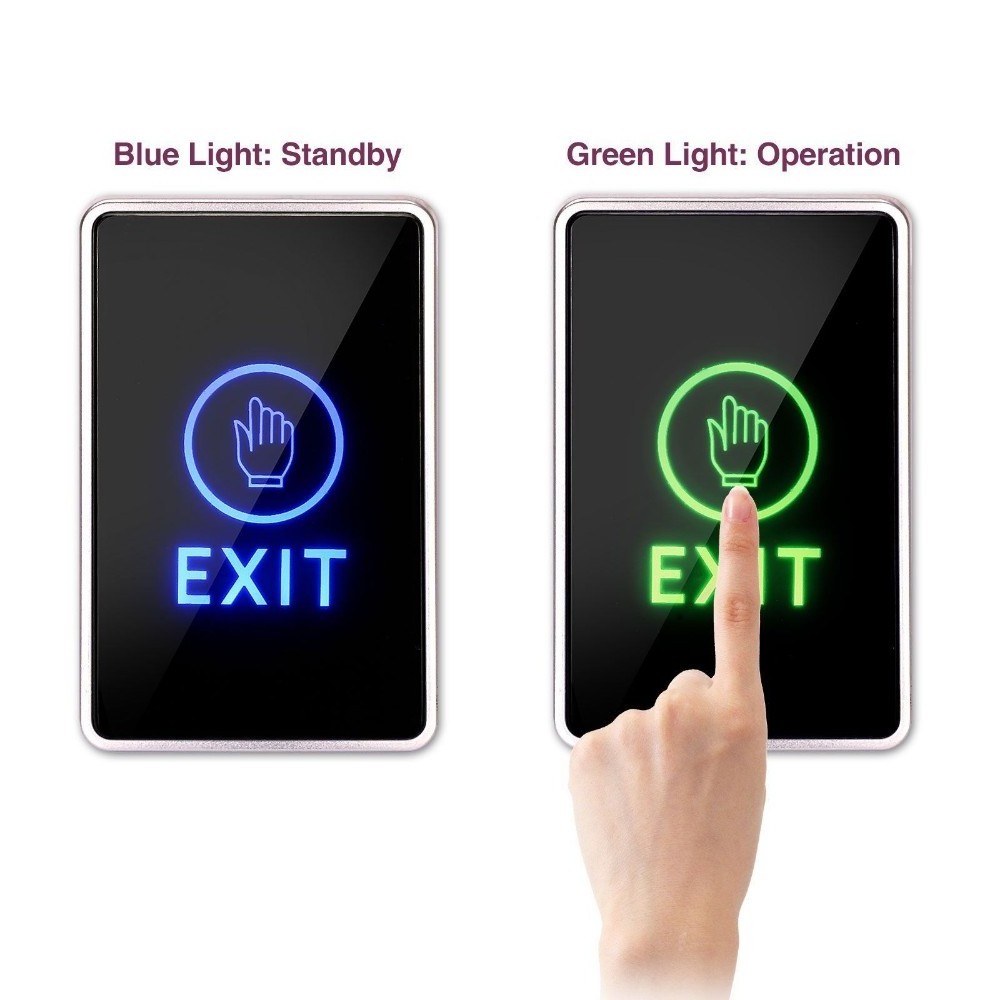

Detailed Images
|
Blue light
|
Green light
|
|
Standby
|
operation
|
|
+12V
|
GDN
|
NO
|
COM
|
NC
|
|
Red
|
Black
|
Yellow
|
White
|
Orange
|
