Quick Details
-
Model Number:
-
FK06
-
Place of Origin:
-
China
-
Support unit Surface treatment:
-
Block Oxide
-
Original brand:
-
FST,SYK,THK
-
Bearing Number:
-
706C
-
Matreical:
-
Chrome Steel
-
Diameter:
-
6mm
-
Weight:
-
0.1kg
Quick Details
-
Applicable Industries:
-
Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction works , Energy & Mining
-
Precision Rating:
-
C7,C5.C3
-
Brand Name:
-
NJSKT
-
Model Number:
-
FK06
-
Place of Origin:
-
China
-
Support unit Surface treatment:
-
Block Oxide
-
Original brand:
-
FST,SYK,THK
-
Bearing Number:
-
706C
-
Matreical:
-
Chrome Steel
-
Diameter:
-
6mm
-
Weight:
-
0.1kg
Product Description

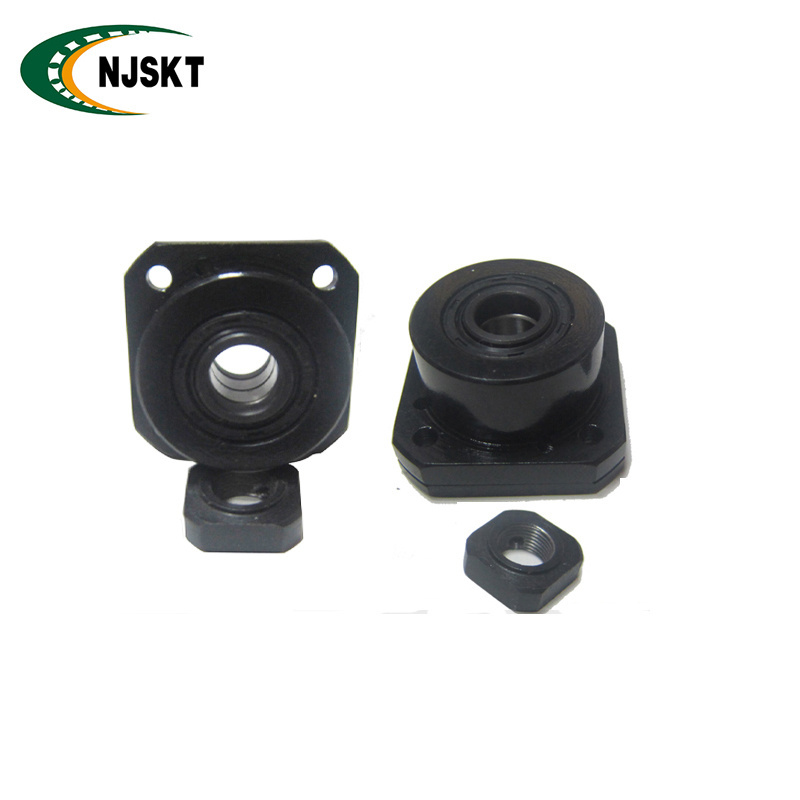

- T he Support Unit comes in six types: models EK, FK, EF, and FF, which are standardized for standard Ball Screw assembly provided with finished shaft ends, and models BK and BF, which are standardized for ball screws in general . The Support Unit on the fixed side contains a high precision JIS Class 5-compliant angular contact ball bearing provided with an adjusted preload.
- The ball screw of the supported side rectangular used the deep groove ball bearings with the high preformance and high accurauy.
- NJSKT bearings offers a full range of support bearings to be fitted on the machined ends of precision rolled ball screws.
-
| Support unit of the ball screw Details : | |
| A Different Name | support unit,fixed-side support,supported-side rectangular typer |
| Size | Following list |
| Brand | NJSKT, FST, TBI, SYK |
| model | FK06 |
| Minimum quantity: |
1 piece
|
| Precision: | C7,C5,C3 |
|
Bearings
|
Angular contact ball bearings |
| Lubrication: | grease |
| Seal types | Double sealed |
| Material: | chrome molybdenum alloy steel |
| Packing | original color box packaging,OrWooden Carrying Case. |
Mounting procedure
-
Installing the suport unit(
NJ1
)
- I nstall the fixed side support unit with the screw shaft.
- After inserting the fixed side support unit,Secure the lok nut using the fastening set piece and the hexgonal socket- head setscrews.
- Attach the supported side bearings to the screw shaft and secure the bearing using the snap ring,And then install the assemblu to the housing on the supported side.
- Installation onto the table and the base.( NJ2 )
- If using a bracket when mounting the ball screw nut to the table,insert the nut into the bracket and temporarily fasten it.
- Temporarily fasten the fixed side support unit to the base.Nowpress the table toward the fixed side support unit to align the axial center,and adjust the table so that it can travel freely.
- Press the table toward the fixed-side support unit to aligh the axial center,Make the adjustment by reciprocation the table several times so that the nut travels smoothly throughout the whole stroke,and teporarily secure the support unit to the base.
- Checking the accuracy and fully fastening the support unit.( NJ3 )
-
-
While checking the runout of the ball screw shaft end the axial clearance using a dial gauge,fully fasten the ball screw unt,the nut bracket, the fixed side support unit and the supported-side support unit.
-
While checking the runout of the ball screw shaft end the axial clearance using a dial gauge,fully fasten the ball screw unt,the nut bracket, the fixed side support unit and the supported-side support unit.
- Connwction with the motor( NJ4 )
- Mount the motor bracket to the base.
- Connect the motor and the ball screw using a coupling.
Our Services
- Standard size:1pc or 100pcs or 1000pcs accept,(Different model and size have different requirement)
- Non-standard size: :500PCS to 1000PCS
- T/T ,L/C, Western Union,PayPal, Credit Card
- Free sample after deposit,or sample cost at buyer's cost( refundable )
- For Small orders (1pc-50pc)and samll Size,we send by express UPS,DHL,FEDEX, or EMS,china post with Thracking number
- For Big quantity (1000pc-100000pc) , we will ship by sea.
- Providing guidance for bearing type selection ,choosing the optimal desidn,reducin H the customer cost and esuring the operating performance of equipment
- Hlping customers design bearing applications and providing overall solutions
- Reducing operating cost for customers
- Providing customers with transportation arrangements and related service
- Assisting customers in handling icoming inspection.
- Providing customers with trainings about bearings installation,operation and maintenance
- ENsuring the stable operation of equipment,improving
- Providing bearing failure analysis
