Quick Details
-
Brand Name:
-
Xunchi
-
Material:
-
carbon steel ,201SUS,304SUS
-
Contract manufacture:
-
OEM services offered, design services offered
-
Accept:
-
OEM
-
Diameter:
-
25 38 50 60 76 89
-
Guarantee:
-
12 months
-
Application:
-
Roller Conveyor
-
Feature:
-
High quality low cost
Quick Details
-
Warranty:
-
12 Months
-
Weight (KG):
-
2
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Xunchi
-
Material:
-
carbon steel ,201SUS,304SUS
-
Contract manufacture:
-
OEM services offered, design services offered
-
Accept:
-
OEM
-
Diameter:
-
25 38 50 60 76 89
-
Guarantee:
-
12 months
-
Application:
-
Roller Conveyor
-
Feature:
-
High quality low cost
Product Description

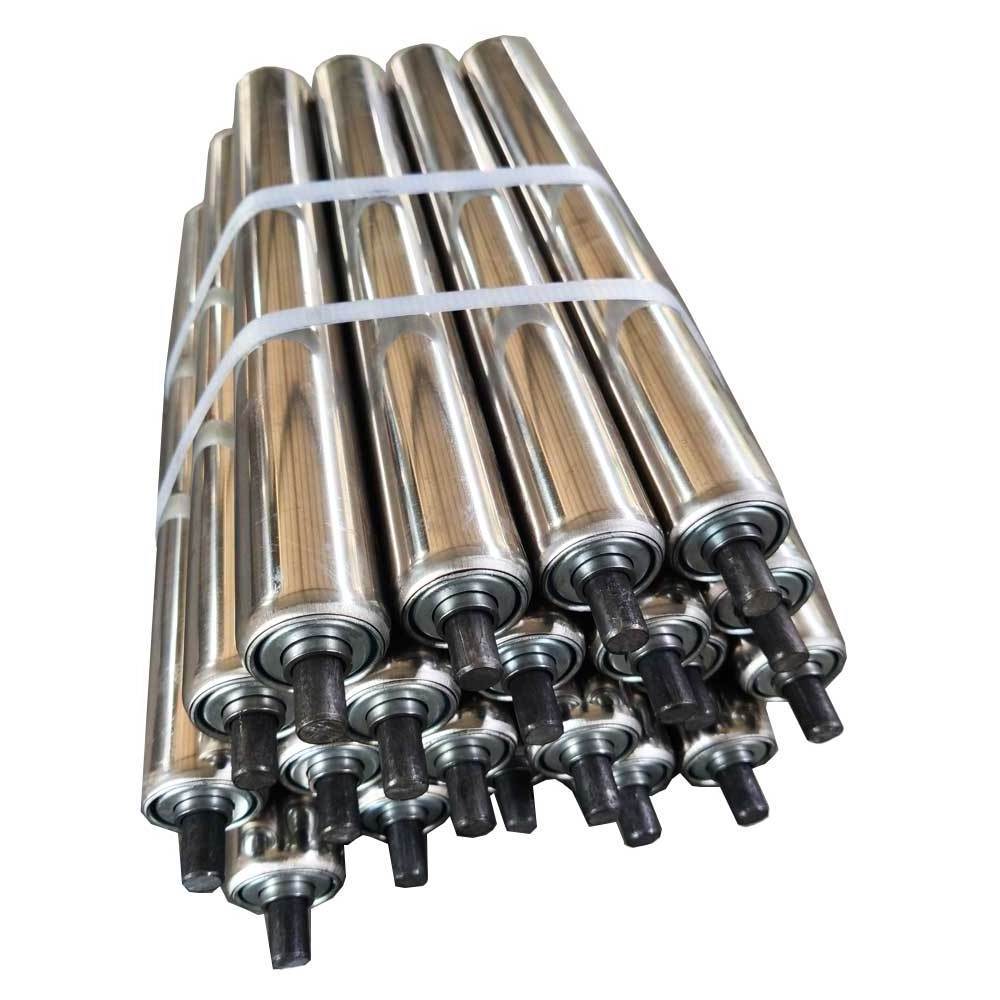

SST201 SST304 Stainless Steel Light Duty Gravity Conveyor Roller Non-power Rolling Line For Roller Conveyor
|
Specification
|
|
|
|
Diameter
|
25-89mm
|
|
|
Length
|
100-2000mm
|
|
|
Tube
|
45# steel(GB) equal to C45，201SUS,304SUS
|
|
|
Shaft
|
45# steel(GB) equal to C45，201SUS,304SUS
|
|
|
Bearing
|
Single & Double Row Deep Groove Ball Bearing 2RZ&2Z wigh C3 clearance
|
|
|
Grease
|
Lithium soap type grease,grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal
|
|
|
Lubrication
|
Grease is Lithium soap type grease with Rust Inhibitors
|
|
|
Welding
|
Mixed gas shielded arc welding end
|
|
|
Painting
|
Ordinary painting, hot galvanized painting, electric static spraying painting, baked painting
|
|
|
Standard Diameter(mm)
|
Roller Thickness (mm)
|
Roller Length
(mm)
|
Shaft Diameter
(Min-Max)
|
Tube Material
|
|
φ25
|
T=0.8/1.0/1.2
|
100-2000
|
φ8
|
Carbon Steel Stainless Steel |
|
φ38
|
T=1.0/1.2/1.5
|
100-2000
|
φ12
|
|
|
φ50
|
T=1.0/1.2/1.5/2.0
|
100-2000
|
φ12/φ15
|
|
|
φ57
|
T=1.0/1.2/1.5/2.0
|
100-2000
|
φ12/φ15
|
|
|
φ60
|
T=1.2/1.5/2.0
|
100-2000
|
φ12/φ15
|
|
|
φ76
|
T=1.5/2.0/3.0
|
100-2000
|
φ12/φ15/φ20
|
|
|
φ89
|
T=2.0/2.5/3.0
|
100-2000
|
φ20
|
|
Main Features
Detailed Images
* Stainless steel roller
Food available
*
Galvanized drum
*
Non - powered roller conveying track
Our Company
Packing & Delivery
Related Products
FAQ
1.Q: Are you a factory or trading company?
A: We are manufactuer of the conveyor roller.
2.Q: What is your minimum order quantity?
A: The MOQ is 100pcs,Trial order is welcome at lower quantity, pls advise the estimated quantity, so that
we can check the best price for you.
3.Q: How long warranty for goods ?
A: All of our products have one year warranty.
4:Q: How about your quality?
A: Our quality are good and stable. The Quality Certificate will issued for each shipment.
