Quick Details
-
Use:
-
Agriculture
-
Production Capacity (kg/h):
-
50 - 70
-
Weight:
-
65 KG
-
product name:
-
coating pan machine
-
application:
-
sugar/chocolate/peanut/tablet coating
-
material:
-
SS304 / copper
-
spraying system:
-
optional
-
air cooling:
-
optional
-
capacity:
-
1-300kg
-
speed adjuster:
-
available
-
hot air pipe:
-
available
-
baffles inside:
-
optional
-
external heating:
-
optional
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
QUANTA
-
Type:
-
Farm Equipment
-
Use:
-
Agriculture
-
Production Capacity (kg/h):
-
50 - 70
-
Weight:
-
65 KG
-
product name:
-
coating pan machine
-
application:
-
sugar/chocolate/peanut/tablet coating
-
material:
-
SS304 / copper
-
spraying system:
-
optional
-
air cooling:
-
optional
-
capacity:
-
1-300kg
-
speed adjuster:
-
available
-
hot air pipe:
-
available
-
baffles inside:
-
optional
-
external heating:
-
optional
1.This machine is mainly used for making pellet, film coating on tablets. It can also be used for making ball shape products or granules, mixing, and polishing, etc.Such as:chocolate polishing, peanut coating, sugar coating,seasoning, producing tapioca pearls, porcelain ball making, etc.
| Model | BY200 | BY300 | BY400 | BY600 | BY800 | BY1000 | BY1250 | BY1500 |
| Diameter of coating drum (mm) | 200 | 300 | 400 | 600 | 800 | 1000 | 1250 | 1500 |
| Capacity (kg/time) | 1 | 2 | 5 | 15 | 30-50 | 50-70 | 80-150 | 300-400 |
| Rotation Speed (r/min) | 46 | 46 | 46 | 36 | 36 | 32 | 28 | 26 |
| Power of motor (KW) | 0.37 | 0.37 | 0.37 | 0.75 | 1.5 | 1.5 | 3 | 5.5 |
| Power of fan (KW) | 0.06 | 0.06 | 0.06 | 0.06 | 0.15 | 0.15 | 0.2 | 0.37 |
| Power of heating (KW) | 1.2 | 1.2 | 1.2 | 2 | 2.2 | 3 | 4 | 6 |
| Overall size (mm) | 500*350 *700 | 500*350 *700 | 550*400 *800 | 800*600 *900 | 1000*800 *1430 | 1100*1000 *1560 | 1250*1200 *1820 | 1500*1500*1980 |
| Weight (kg) | 36 | 37 | 38 | 85 | 205 | 220 | 350 | 600 |

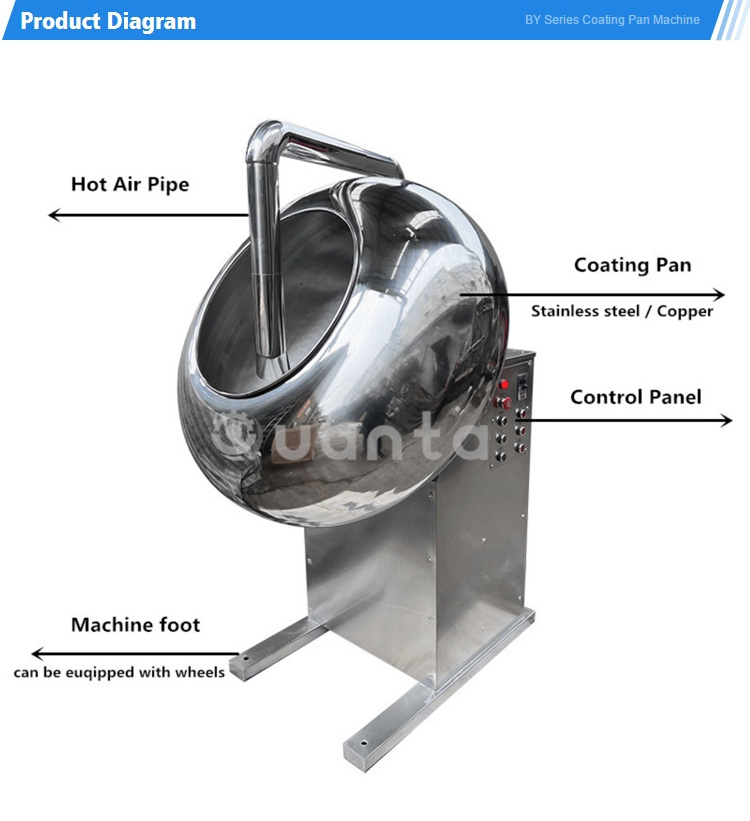

Standard model of BY coating pan machine with hot air pipe , speed control of the pan rotation :
1. Copper Pan & Octagonal Pan :
2. Machine with automatically rotate to empty the material and gas/electric heater down the pan :
