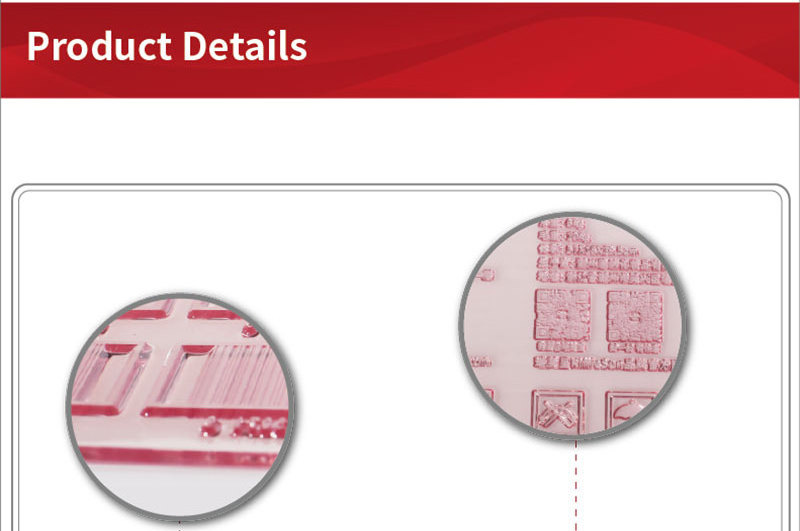

- Product Details
- {{item.text}}
Quick Details
-
Type:
-
Flexo Plate
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
AOLIDE
-
Model Number:
-
AA394 - I
-
Color:
-
Yellow
-
Thickness(mm):
-
3.94
Quick Details
-
Use:
-
Flexo Printing
-
Material:
-
Nylon Resin
-
Style:
-
POSITIVE
-
Type:
-
Flexo Plate
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
AOLIDE
-
Model Number:
-
AA394 - I
-
Color:
-
Yellow
-
Thickness(mm):
-
3.94
Parameters-1
| Type | AA700 -Ⅰ | AA635 -Ⅰ | AA550 -Ⅰ | AA470 -Ⅰ |
| Plate thickness(mm) | 7.00 | 6.35 | 5.50 | 4.70 |
| Durometer(Shore A) | 38-40 | 36 | 36 | 36 |
| Recommended relief depth(mm) | 3.2-3.8 | 2.2-3.0 | 2.0-3.0 | 1.2-2.2 |
| Image reproduction | 3~95% | 3~95% | 3~95% | 3~95% |
| Maximum line line/inch | 85 | 85 | 85 | 85 |
| Minimum isolated line | 0.30mm (0.012inch) | 0.30mm (0.012inch) | 0.30mm (0.012inch) | 0.30mm (0.012inch) |
| Minimum isolated dot | 0.50mm (0.02inch) | 0.50mm (0.02inch) | 0.50mm (0.02inch) | 0.50mm (0.02inch) |
| Compatible ink | Suitable for water and alcohol-based ink, incompatible with oil-based ink, hydrocarbon solvent or the ink containing ethyl acetate of more than 25% | |||
| Main application | Corrugated board | |||
| Type | AA394 -Ⅰ | AA394 -Ⅱ | AA318 -Ⅰ | AA284 -Ⅰ | AA284 -Ⅱ |
| Plate thickness(mm) | 3.94 | 3.94 | 3.18 | 2.84 | 2.84 |
| Durometer(Shore A) | 43 | 38-36 | 37 | 46 | 53 |
| Recommended relief depth(mm) | 1.8-2.0 | 1.8-2.0 | 0.9-1.5 | 1.0-1.4 | 1.0-1.4 |
| Image reproduction | 3~95% | 3~95% | 2-95% | 2-95% | 2-95% |
| Maximum line line/inch | 100 | 100 | 120 | 120 | 120 |
| Minimum isolated line | 0.30mm (0.012inch) | 0.30mm (0.012inch) | 0.175mm (0.007inch) | 0.175mm (0.007inch) | 0.175mm (0.0068inch) |
| Minimum isolated dot | 0.50mm (0.02inch) | 0.50mm (0.02inch) | 0.25mm (0.01inch) | 0.25mm (0.01inch) | 0.25mm (0.01inch) |
| Compatible ink | Suitable for water and alcohol-based ink, incompatible with oil-based ink, hydrocarbon solvent or the ink containing ethyl acetate of more than 25% | ||||
| Main application | Corrugated board,Thick board,Paper | Corrugated board,Thick board,Paper,Stamp | |||
Parameters-1-1
| Type | AA284 -Ⅲ | AA254 -Ⅰ | AA228 -Ⅰ |
| Platethickness(mm) | 2.84 | 2.54 | 2.28 |
| Durometer(Shore A) | 38 | 56 | 56 |
| Recommended relief depth (mm) | 1.0-1.2 | 1.0-1.2 | 1.0-1.2 |
| Image reproduction | 2-95% | 2-95% | 2-95% |
| Maximum ( line/inch) | 133 | 133 | 133 |
| Minimum isolated line | 0.15mm (0.0059inch) | 0.15mm (0.0059inch) | 0.15mm (0.0059inch) |
| Minimum isolated dot |
0.2mm
(0.0079inch) |
0.2mm
(0.0079inch) |
0.2mm
(0.0079inch) |
| Compatible ink | Suitable for water and alcohol-based ink, incompatible with oil-based ink, hydrocarbon solvent or the ink containing ethyl acetate of more than 25% | ||
| Main application | Label,Flexible package,Carry bag,Folded paper box,Napkin,Beverage package | ||
| Type | AA170 -Ⅰ | AA170 -Ⅱ | AA114 -Ⅰ | AA114 -Ⅱ |
| Platethickness(mm) | 1.70 | 1.70 | 1.14 | 1.14 |
| Durometer(Shore A) | 60-62 | 70-72 | 69-70 | 75-76 |
| Recommended relief depth (mm) | 0.7-0.9 | 0.7-0.9 | 0.6-0.7 | 0.6-0.7 |
| Image reproduction | 2~95% | 2~95% | 2~95% | 2~95% |
| Maximum ( line/inch) | 150 | 150 | 150 | 150 |
| Minimum isolated line | 0.15mm (0.0059inch) | 0.10mm (0.004inch) | 0.10mm (0.004inch) | 0.10mm (0.004inch) |
| Minimum isolated dot | 0.20mm (0.0079inch) | 0.20mm (0.0079inch) | 0.20mm (0.0079inch) | 0.20mm (0.0079inch) |
| Compatible ink |
Suitable for UV ink, some tested solvent inks, besides water and
alcohol-based ink |
Suitable for water , alcohol-based ink and UV-ink | ||
| Main application |
Film,Label,flexible package, Carry bag,Folded paper box ,
Beverage package |
Film,Label,flexible package, Beverage package printing and
varnish |
||
Parameters-2
| Type | AA700 -Ⅰ | AA635 -Ⅰ | AA550 -Ⅰ | AA470 -Ⅰ | AA394 -Ⅰ AA394 -Ⅱ | AA318 -Ⅰ | |
| Plate thickness(mm) | 7.00 | 6.35 | 5.50 | 4.70 | 3.94 | 3.18 | |
| Size mm(inch) | 762×1016 (30×40) | √ | √ | √ | √ | √ | √ |
| 1067×1524 (42×60) | √ | √ | √ | √ | √ | √ | |
| 1067×2032 (42×80) | √ | √ | √ | √ | √ | √ | |
| 1200×2032 (47.2×80) | - | - | - | - | √ | - | |
| 1270×2032 (50×80) | √ | √ | √ | √ | √ | √ | |
| Type | AA284 -Ⅰ | AA284 -Ⅱ AA284 -Ⅲ | AA254 -Ⅰ | AA228 -Ⅰ | AA170 -Ⅰ AA170 -Ⅱ | AA114 -Ⅰ AA114 - Ⅱ | |
| Plate thickness(mm) | 2.84 | 2.84 | 2.54 | 2.28 | 1.70 | 1.14 | |
| Size mm(inch) | 762×1016 (30×40) | √ | √ | √ | √ | √ | √ |
| 1067×1524 (42×60) | √ | √ | √ | √ | √ | √ | |
| 1067×2032 (42×80) | √ | √ | √ | √ | √ | √ | |
| 1200×2032 (47.2×80) | - | - | - | - | - | - | |
| 1270×2032 (50×80) | √ | √ | √ | √ | √ | √ | |
Parameters-3
| Type | AA700 -Ⅰ | AA635 -Ⅰ | AA550 -Ⅰ | AA470 -Ⅰ |
| Plate thickness( mm) | 7.00 | 6.35 | 5.50 | 4.70 |
| Back Exposure(seconds) | 180-280 | 160-280 | 80-220 | 80-200 |
| Main Exposure(minutes) | 16-24 | 16-24 | 10-20 | 10-20 |
| Rinsing(minutes) | 10-12 | 10-12 | 9-12 | 9-12 |
| Drying(hours) | 3-4 | 3-4 | 3-3.5 | 3 |
| Detackfying (minutes) | 5-8 | 5-8 | 5-8 | 5-7 |
| Post exposure(minutes) | 5-8 | 5-8 | 5-8 | 3-5 |
| Type | AA394 -Ⅰ | AA394 -Ⅱ | AA318 -Ⅰ | AA284 -Ⅰ |
| Plate thickness( mm) | 3.94 | 3.94 | 3.18 | 2.84 |
| Back Exposure(seconds) | 35-70 | 50-70 | 25-75 | 25-40 |
| Main Exposure(minutes) | 8-20 | 8-20 | 8-20 | 8-20 |
| Rinsing(minutes) | 5-7 | 5-7 | 5-7 | 5-7 |
| Drying(hours) | 1.5-2 | 1.5-2 | 1.5-2 | 1.5-2 |
| Detackfying (minutes) | 5-7 | 5-7 | 5-7 | 5-7 |
| Post exposure(minutes) | 3-5 | 3-5 | 5 | 3-5 |
| Type | AA284 -Ⅱ | AA284 -Ⅲ | AA254 -Ⅰ | AA228 -Ⅰ |
| Plate thickness( mm) | 2.84 | 2.84 | 2.54 | 2.28 |
| Back Exposure(seconds) | 25-40 | 25-50 | 18-30 | 35-55 |
| Main Exposure(minutes) | 8-20 | 8-15 | 8-15 | 8-20 |
| Rinsing(minutes) | 5-7 | 5-7 | 5-7 | 5-7 |
| Drying(hours) | 1.5-2 | 1.5-2 | 1.5-2 | 1.5-2 |
| Detackfying (minutes) | 5-7 | 8-15 | 5-7 | 5-7 |
| Post exposure(minutes) | 5 | 5 | 5 | 5 |
| Type | AA170 -Ⅰ | AA170 -Ⅱ | AA114 -Ⅰ | AA114 -Ⅱ |
| Plate thickness( mm) | 1.70 | 1.70 | 1.14 | 1.14 |
| Back Exposure(seconds) | 25-40 | 15-21 | 35-60 | 35-70 |
| Main Exposure(minutes) | 10-18 | 10-18 | 10-18 | 10-18 |
| Rinsing(minutes) | 5-7 | 5-7 | 5-7 | 5-7 |
| Drying(hours) | 1.5-2 | 1.5-2 | 1-1.5 | 1-1.5 |
| Detackfying (minutes) | 5-7 | 5-8 | 5-7 | 5-8 |
| Post exposure(minutes) | 5 | 5 | 5 | 5 |
