Quick Details
-
Voltage:
-
220V, 380V
-
Power:
-
138
-
Weight:
-
300 KG
-
brand:
-
YGT
-
MOQ:
-
1SET
-
weight:
-
300kg
-
place of origin:
-
China
-
material:
-
SUS304
-
Application:
-
plant based milk
Quick Details
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
YGT
-
Voltage:
-
220V, 380V
-
Power:
-
138
-
Weight:
-
300 KG
-
brand:
-
YGT
-
MOQ:
-
1SET
-
weight:
-
300kg
-
place of origin:
-
China
-
material:
-
SUS304
-
Application:
-
plant based milk
Product Paramenters
Drinking Beverage Aseptic Filler of SUS 304 Machine
The filling machine is mainly divided into Aseptic filling machine and Ordinary filling machine .
Aseptic filling machine is specially designed for large volume aseptic bag filling with the feature of small floor space covering, high stability and easy operation. Aseptic filler is widely used in aseptic packaging of liquid such as fruit juice, fruit pulp and jam. At room temperature, the product can be stored for more than one year, saving the cost and risk of cold storage transportation. The aseptic filling machine can be directly connected with the sterilizing machine, and the products after UHT sterilization can be directly filled in the aseptic bag. Aseptic bag is multi-layer aluminum plastic bag, which can effectively isolate sunlight and oxygen and ensure product quality to the maximum extent.
Specification
|
Power supply
|
AC380V,50HZ
|
|
Power consumpton
|
≤0.2KW
|
|
Filling product
|
juice , jam, water , wine, oil etc
|
|
Filling range
|
2kg-30kg Filling speed:200-240 bag/hr (5L)
|
|
Filling error
|
≤±0.5%
|
|
Inlet pressure
|
0.3~0.35MPa
|
|
Air source pressure
|
0.6~0.8MPa
|
|
Air consumption
|
30kg/h
|
|
Machine weight
|
350kg
|
|
Machine size
|
1100*1000*1860mm
|
Products Description

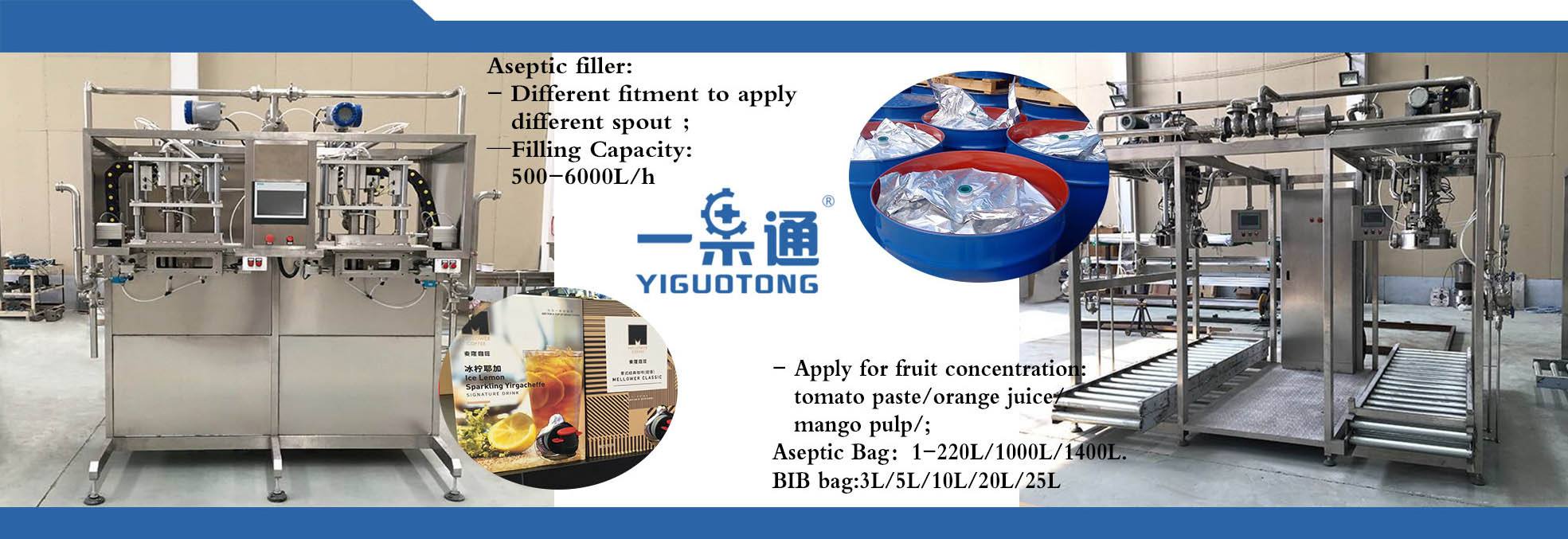

BIB aseptic filling machine
The Bag-in-Box (BIB) Aseptic Filling Machine is designed for aseptically filling spout-prepared aseptic bags with sterile fluids like natural juice, concentrate, vegetable juice, fruit syrup, fruit jam, magma beverage, dairy product and pharmaceutical. The machine can use varous spigots including Vitop and Scholle's. It is designed with CIP (Clean-in-Place) function and a circuit for connecting to a CIP system.
Single-head big bag
aseptic filling machine
The capacity of the canned aseptic bag of the large-bag aseptic filling machine is larger than that of the BIB aseptic bag. Both the large-bag aseptic filling and the BIB aseptic filling have multiple heads and double heads, and multiple single heads can be connected in series. Many people operate at the same time.
