Quick Details
-
Model Number:
-
Aline-206
-
Dimension:
-
455x610x465(mm)
-
Output Power:
-
LF: 200W AES /800W Peak / HF:50W AES /200W Peak
-
Sensitivity(1w/1m):
-
LF:95dB / HF:106dB
-
Maximum SPL:
-
LF:118dB /124dB Peak / HF:123dB /129dB Peak
-
Nominal Impedance:
-
LF:8 Ohm / HF:8 Ohm
-
Color:
-
Black
-
Wood Material:
-
Birch Plywood
-
Service:
-
OEM or ODM
-
Certificate:
-
CE ROHS
-
Application:
-
Banquet Hall,theatre, church and indoor events
Quick Details
-
Warranty:
-
3years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dragon stage or A+
-
Model Number:
-
Aline-206
-
Dimension:
-
455x610x465(mm)
-
Output Power:
-
LF: 200W AES /800W Peak / HF:50W AES /200W Peak
-
Sensitivity(1w/1m):
-
LF:95dB / HF:106dB
-
Maximum SPL:
-
LF:118dB /124dB Peak / HF:123dB /129dB Peak
-
Nominal Impedance:
-
LF:8 Ohm / HF:8 Ohm
-
Color:
-
Black
-
Wood Material:
-
Birch Plywood
-
Service:
-
OEM or ODM
-
Certificate:
-
CE ROHS
-
Application:
-
Banquet Hall,theatre, church and indoor events
Product Description

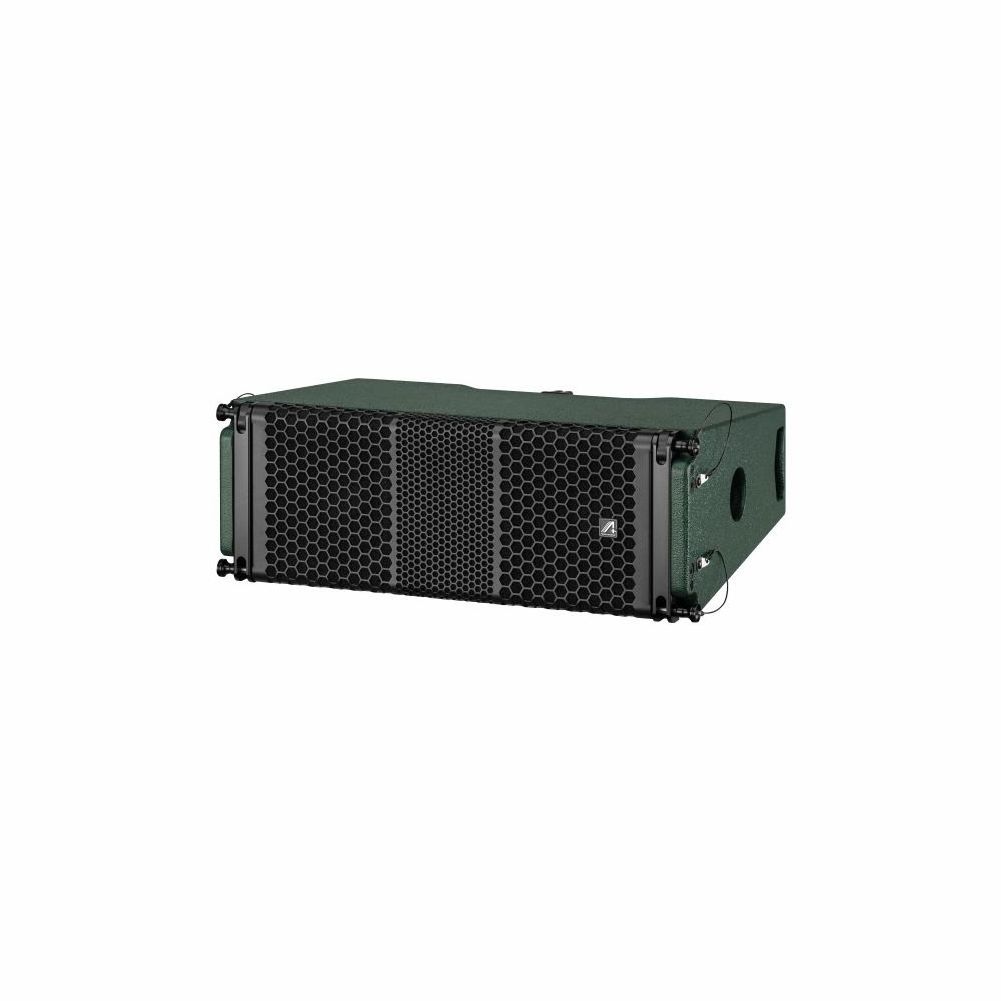

Aline-206 Active two-way Full Range Line Array
Features：
Small size, light weight, single person can operate
Full neodymium magnetic speaker driver reduces speaker weight
With IP44 waterproof rating
Applications:
High-end conference performance
Banquet Hall
Music festival performance
Stadium
Theater
Church
Small size, light weight, single person can operate
Full neodymium magnetic speaker driver reduces speaker weight
With IP44 waterproof rating
Applications:
High-end conference performance
Banquet Hall
Music festival performance
Stadium
Theater
Church
Specification
|
Model Name: Aline-206
|
Drivers: LF:2×6″ neodymium(162mm)/2″(45mm)Voice-coil HF:1×1.4″neodymium(36mm)exit/1.75″(44m)Voice-coil
|
|
Frequency Response: 60-20000Hz
|
Nominal Impedance: LF:8 Ohm / MHF:8 Ohm
|
|
Sensitivity（1w/1m）: LF:95dB / HF:106dB
|
Output SPL: LF:118dB /124dB Peak / HF:123dB /129dB Peak
|
|
Power Rating （AES）: LF:200W AES / MHF: 50W AES
|
Maximum Power: LF:400W MHF: 100W
|
|
Directivity Angle（H×V）: horizontal:110°Splay angle setting:0°-12°(1°increment)
|
Connector: 2 x Agasound NL4MP
|
|
Wood Material: Birch Plywood
|
Dimension: 198×536×362（mm)
|
|
Net Weight: 15.5kgs
|
Gross Weight:16.8kgs
|
Packing & Delivery
Package Type: S
oft bubble inside,thick carton outside,or flying case
