Quick Details
-
Brand Name:
-
Alotcer
-
Model Number:
-
AD2066
-
Place of Origin:
-
China
-
Product name:
-

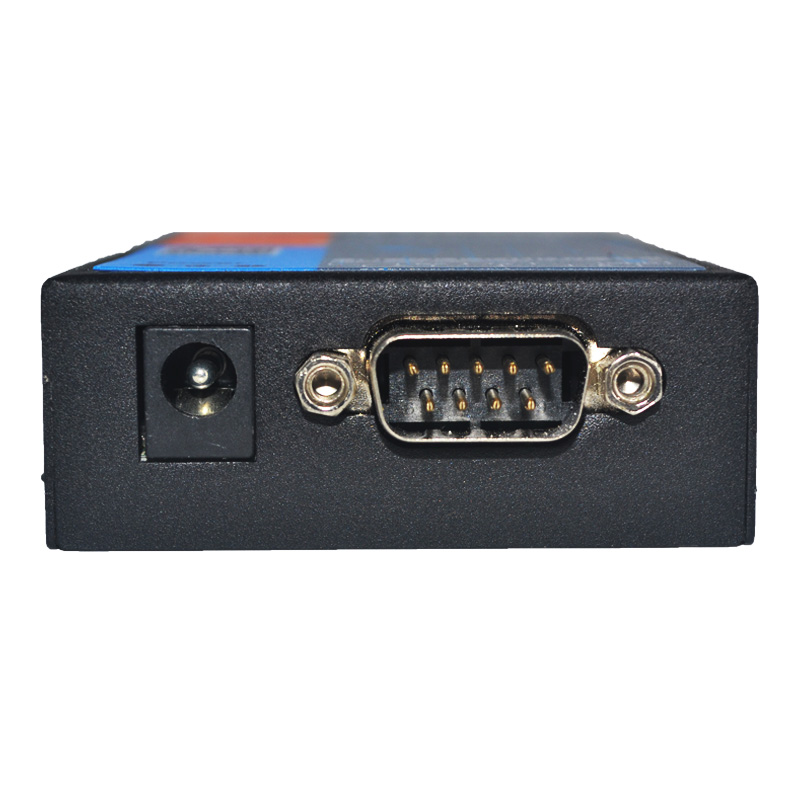

AD2066-D oem 4g lte modem
-
Serial Port:
-
RS232/RS485
-
Protocol:
-
Modbus TCP
-
Antenna:
-
7dBi high gain Antennas
-
Wireless Speed:
-
DL 7.2Mbps, UP 5.7Mbps
-
Application:
-
Industrial Field/M2M
-
Warranty:
-
1 Year for oem 4g lte modem
-
Certification:
-
CE FCC RED 3C
Quick Details
-
Style:
-
External
-
Type:
-
Wireless
-
Transmission Rate:
-
1024Kbps
-
Brand Name:
-
Alotcer
-
Model Number:
-
AD2066
-
Place of Origin:
-
China
-
Product name:
-
AD2066-D oem 4g lte modem
-
Serial Port:
-
RS232/RS485
-
Protocol:
-
Modbus TCP
-
Antenna:
-
7dBi high gain Antennas
-
Wireless Speed:
-
DL 7.2Mbps, UP 5.7Mbps
-
Application:
-
Industrial Field/M2M
-
Warranty:
-
1 Year for oem 4g lte modem
-
Certification:
-
CE FCC RED 3C
Related Products
AD2000 Cellular Modem

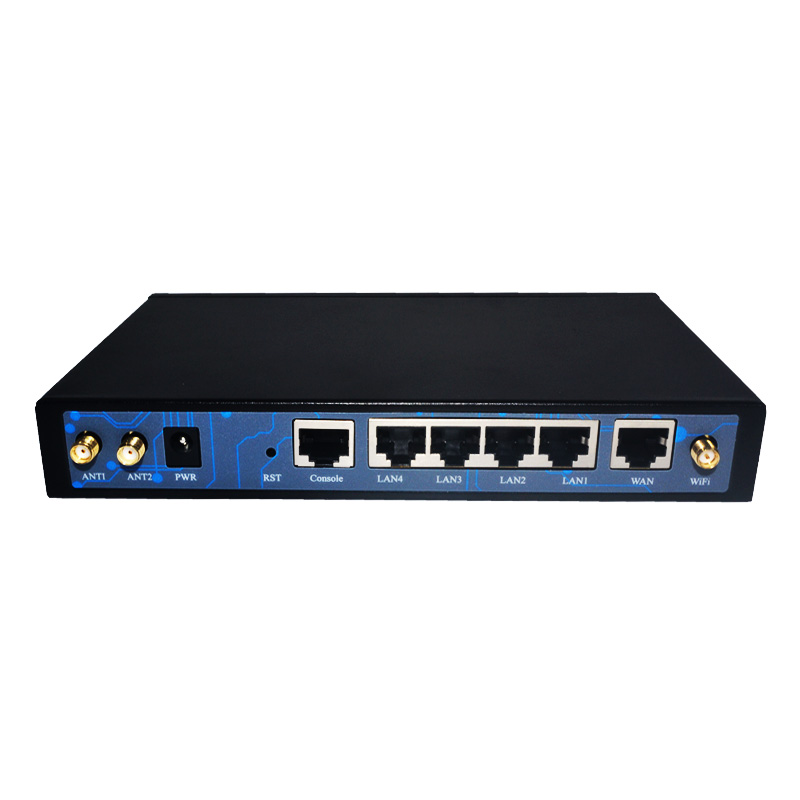

AD7028 Cellular router
AR7000 Cellular router
Product Description
Highlights
Specifications
oem 4g lte modem
|
Items
|
|
Contents
|
|
Hardware System
|
CPU
|
Industrial 32 bits CPU
|
|
|
FLASH
|
1MB (Extendable to 8MB)
|
|
|
SDRAM
|
256KB(Extendable to 1MB)
|
|
Interface
|
Serial
|
1 RS232 port and 1 RS485(or RS422) port
|
|
|
Antenna
|
Cellular: Standard SMA female
GPS(optional):Standard SMA female |
|
Network
|
|
GSM/GPRS/EDGE: 850/900/1800/1900MHz
WCDMA/HSUPA/HSPA+: 850/900/1900/2100MHz TDD-LTE: Band 38/39/40/41& Band 61/62 FDD-LTE: Band 1/2/3/4/5/7/8/13/17/20/25/28/66 |
|
GPS (optional)
|
Receiver Type
|
GPS L1(1575.42MHz)C/A code
SBAS: WAAS,EGNOS,MSAS,GAGAN |
|
|
Max. update rate
|
5 Hz
|
|
|
Accuracy
|
Position: 2.5m CPE
SBAS: 2.0m CPE |
|
|
Standard Power
|
DC 12V/1.5A
|
|
|
Power range
|
DC 5~35V
|
|
Physical
|
Dimensions
|
91x59x23mm
|
|
|
Weight
|
175g
|
|
Temperature
|
Operating Temperature
|
-35~+75ºC (-31~+167℉)
|
Packing & Delivery
As we are the manufacuturer, and the top vendor for National power grid, we have stocks more than 20000 pcs in the warehouse, delivery is 1 day.
With standard export package, shipping via DHL, Fedex, UPS, TNT, EMS is optional.
Application
With the AD2066 oem 4g lte modem connect to the serial device, transport the dat to via the internet to the data center, make the remote mornitoring smart and environmental.
