Quick Details
-
Type:
-
Grain Processing Equipment
-
Use:
-
Cleaning Sorting Grading
-
Production Capacity (kg/h):
-
20000 - 50000
-
Sieve Size(mm):
-
3750*1100
-
Power (kW):
-
17.98
-
Weight:
-
3450 KG
-
Application:
-
Cereal Grains
-
Function:
-
Grain Size Separation
-
Supply range:
-
Seed Processing Plant
-
Capacity:
-
20-50t/h
-
Usage:
-
Cleaning Cereal Grains
-
MOQ:
-
1 set
Quick Details
-
Place of Origin:
-
Germany
-
Brand Name:
-
Petkus
-
Dimension(L*W*H):
-
3750*3750*4100
-
Type:
-
Grain Processing Equipment
-
Use:
-
Cleaning Sorting Grading
-
Production Capacity (kg/h):
-
20000 - 50000
-
Sieve Size(mm):
-
3750*1100
-
Power (kW):
-
17.98
-
Weight:
-
3450 KG
-
Application:
-
Cereal Grains
-
Function:
-
Grain Size Separation
-
Supply range:
-
Seed Processing Plant
-
Capacity:
-
20-50t/h
-
Usage:
-
Cleaning Cereal Grains
-
MOQ:
-
1 set
Products Description

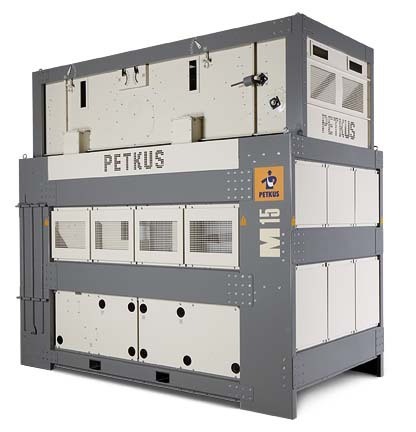

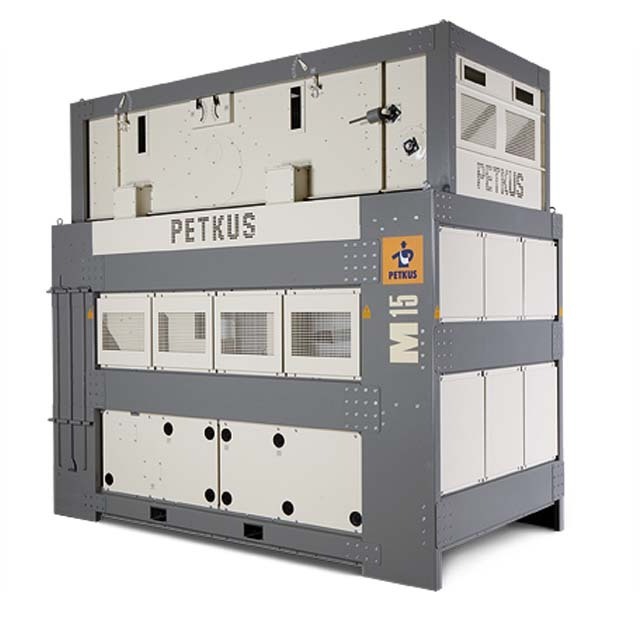

The PETKUS M-Cleaner (Multi-Cleaner) was especially designed for flexible, high quality use in the seed industry. It is used for grain, grass and fine seeds, brewing barley, malt, soy beans, corn, oilseeds, and pulses. The cleaner can be used for pre-cleaning and intensive cleaning, but mainly for seed cleaning. The proven infeed, which uses an inlet flap equipped with weights and the motor-driven cylindrical roller provide for an even product flow without re-adjustment even for poorly flowing grain. This is a prerequisite for an economic utilization and optimal separation.

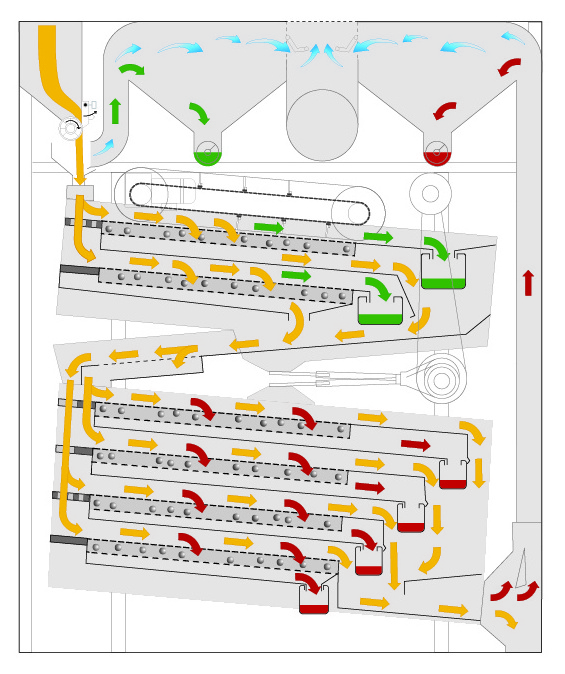

The first screen layer is used for separating the coarse rejects and the second screen layer can either be used for separating coarse or light rejects depending on the desired mode of cleaning. The four screen layers in the bottom screen compartment can be used for separating coarse and light rejects or for calibrating the product by using the product diverters and chutes. Excellent cleaning results are achieved due to the variable screening diagrams and the patented PETKUS Dual-Channel-Aspiration System. The closed, bolted and painted steel construction ensures a long service life.
Product Paramenters
Details Images
Features
* Cleaning with the highest precision where calibration is also possible
* Low specific screen load due to two screen compartments seven screen layers and a working width of up to 1500 mm
* Powerful dual-channel air separation system allowing for a high separation rate
* Adjustable, weighted drum feeds with an optional vibrating chute

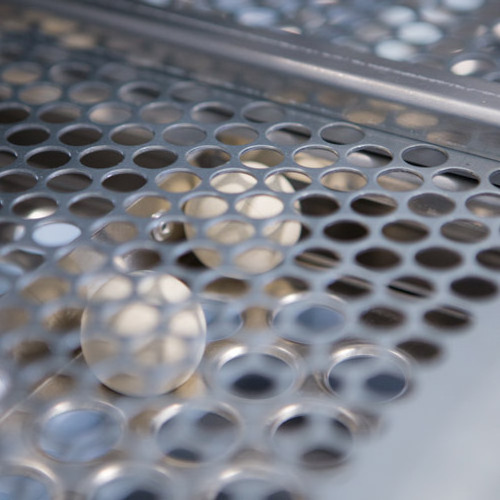

* Proven ball cleaning method together with the innovative, PETKUS revolving scraper minimizes the danger of clogging by equally dispersing the material over the entire working surface
* Optional innovative pneumatic screen release
* Removable ball trays

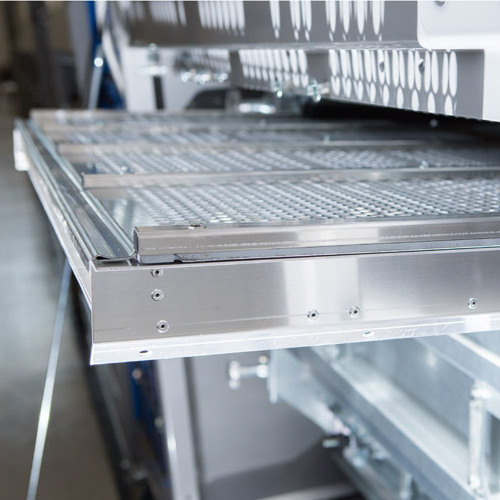

* Aluminum screen frames
* Low specific screen load due to two screen compartments seven screen layers and a working width of up to 1500 mm
* Powerful dual-channel air separation system allowing for a high separation rate
* Adjustable, weighted drum feeds with an optional vibrating chute
* Proven ball cleaning method together with the innovative, PETKUS revolving scraper minimizes the danger of clogging by equally dispersing the material over the entire working surface
* Optional innovative pneumatic screen release
* Removable ball trays
* Aluminum screen frames
Related Products
Product packaging
FAQ
Q1:What is seed cleaning?
Ans: This is the process of removal of any foreign material or low quality, infected seeds and different crop varieties. Seed cleaning is that segment of the seed industry responsible for upgrading seed & improving planting condition of seed .This help in increasing the quality of the seeds hence ensuring increase in Farm productivity.
Q2:When should seed cleaning be carried out?
Ans: Seeds should be cleaned immediately after harvest. If the seeds are very moist and cleaning is done by machines, it may be necessary to dry the seeds within 12 - 16% moisture content before cleaning to prevent damage.
Q3:How should cleaning be done?
Ans:Cleaning should be done in a way that causes the least damage to the seed and does not waste good seeds.
Q4:Is seed cleaning something I can do myself to reduce costs?
Ans: Professional seed cleaning represents a small percentage of the final cost of finished goods. We see great value in the services we offer and hope to have an opportunity to work with you.
Q5: Can One Machines work on different seeds?
Ans:We also use individualized, seed specific settings on our machines to limit unwanted scarification. We provide number screens to be fitted on single machinery to our work on different variety of seeds
Q6:How quickly can you turn-around my order?
Ans: It depends on whether you have order single machin or complete plant, but generally speaking it takes only three week time after the receipt of order.
Q7:Capacity mentioned on the machines are input or output capacity?
Ans: Capacity mentioned on the machinery is the total amount of seed/grain machines it can handle per hour and in other words it is input capacity.
