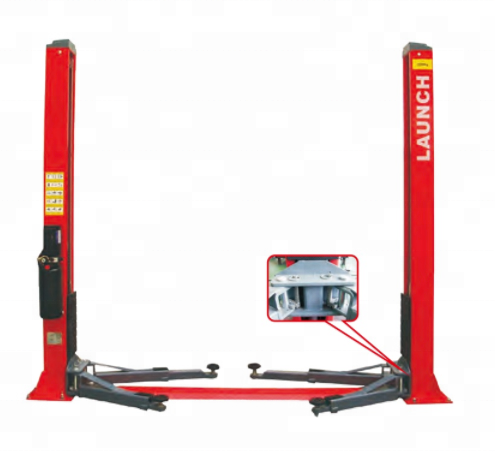

LAUNCH TLT240 SB 4000KG lift Economical Floor Plate 2 Post Lift car lift rolling jack used vehicle hoists
LAUNCH TLT240 SB 4000KG lift Economical Floor Plate 2 Post Lift car lift rolling jack used vehicle hoists
LAUNCH TLT240 SB 4000KG lift Economical Floor Plate 2 Post Lift car lift rolling jack used vehicle hoists
LAUNCH TLT240 SB 4000KG lift Economical Floor Plate 2 Post Lift car lift rolling jack used vehicle hoists
LAUNCH TLT240 SB 4000KG lift Economical Floor Plate 2 Post Lift car lift rolling jack used vehicle hoists
LAUNCH TLT240 SB 4000KG lift Economical Floor Plate 2 Post Lift car lift rolling jack used vehicle hoists
LAUNCH TLT240 SB 4000KG lift Economical Floor Plate 2 Post Lift car lift rolling jack used vehicle hoists
LAUNCH TLT240 SB 4000KG lift Economical Floor Plate 2 Post Lift car lift rolling jack used vehicle hoists

LAUNCH TLT240 SB 4000KG lift Economical Floor Plate 2 Post Lift car lift rolling jack used vehicle hoists

FOB Reference Price: Get Latest Price
≥1 Sets
US $999
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
  • Product Details
  • {{item.text}}

Quick Details

Lowering time:
20s- 40s
Passing width:
2486mm
overall width:
3370mm
Overall height:
2860mm
Working noise:
75dB
Working oil pressure:
16M Pa
Motor Power:
2.2KW
Lifting height:
18500
Lifting capacity:
4000kg

Quick Details

Place of Origin:
Guangdong, China
Warranty:
12 Months
Lifting time:
50s
Lowering time:
20s- 40s
Passing width:
2486mm
overall width:
3370mm
Overall height:
2860mm
Working noise:
75dB
Working oil pressure:
16M Pa
Motor Power:
2.2KW
Lifting height:
18500
Lifting capacity:
4000kg
Specification
Item Notes on Improvement Update Date
Lock release plate assembly improvement on SB,SC series The original lock release plate has the possibility of stucking in the column. The components dimension of the plate has been modified to avoid this problem. 2011-3-12
Limit switch position adjustable The limit switch installed inside of the column wall and activated by the carriage will be fixed on an adapter plate with oval hole to make its position adjustable.(Notes:The limit switch is not a standard part,optional per user's request) 2011-1-30
Create a hole of 50 on both columns In order to meet the after-service peoples requirement,there are two 50 holes on columns for lock release device reparing and maintenance( one hole on each column) 2010-12-13
The sheave seat of TLT235SB is changed from weld part to casting part For decreasing the cost ,the sheave seat will be changed to casting part ,It will not effect the function of the machine. 2008-12-9
Unite the holes on the two-post lift Unite the holes on the column to simplify the processing,It won,t effect the function of the machine. 2008-12-2
Changes of round rubber pad hole position Add shims to the installation holes ,Bottom is flat ,add shims to 8 installation holes and flat washer 8 2008-6-27
M36 hexagon thick nut of support seat changed Accord to the feedback,TLT235SB M36 hexagon thick nut of support seat change to the reguular chamfered edge style,the period of delivery is decreased. 2008-4-1
Changes of steel cable for safety lock for series TLT two lift According to the customer requests ,we add some retaining rings on the rubber pad supporter in order to protect the cable of one side manual safety lock on AT not to slide off ,The carriage of flool-clear two-post lift can be installerd nore convenient 2007-11-26
Increase the shims to the carriage for series two-post lift For well-adjust,the list of carriage (except TLT245ST SK2030)adds:TLT235SB shims I for sliding block(galvanization) ,Q235-A,TLT235SB-20-12-A,code:201010987,number:1 2007-11-5
Door rubber pad of 2-post lift have been changed Door rubber pad reduce weight and add groove 2007-1-19
Processing changes for parts Change being 1,Round plate adding welding outside zinc coating
2,Push rod adding welding outside prcessing
3,Screw adding outside processing 		2007-1-18
Change of HP hose The length of HP hose is changed form 1440mm to 1240mm 2006-12-19
