Quick Details
-
Max. Loading Capacity:
-
5000L
-
Weight (KG):
-
150 KG
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
IDA/Right
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
Customizable
-
Power (kW):
-
1.1 kW
-
Marketing Type:
-
New Product
-
Motor power:
-
0.55-200kw
-
Shaft speed:
-
0-1450 r/min
-
Disc diameter:
-
20-600mm
-
Lift:
-
200-2800mm
-
pump power:
-
0.55-3kw
-
Capacity:
-
50-8000L
-
Weight:
-
360-3000kg
Quick Details
-
Barrel Volume (L):
-
1
-
Max. Loading Volume (L):
-
5000 L
-
Range of Spindle Speed(r.p.m):
-
1 - 1450 r.p.m
-
Max. Loading Capacity:
-
5000L
-
Weight (KG):
-
150 KG
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
IDA/Right
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
Customizable
-
Power (kW):
-
1.1 kW
-
Marketing Type:
-
New Product
-
Motor power:
-
0.55-200kw
-
Shaft speed:
-
0-1450 r/min
-
Disc diameter:
-
20-600mm
-
Lift:
-
200-2800mm
-
pump power:
-
0.55-3kw
-
Capacity:
-
50-8000L
-
Weight:
-
360-3000kg

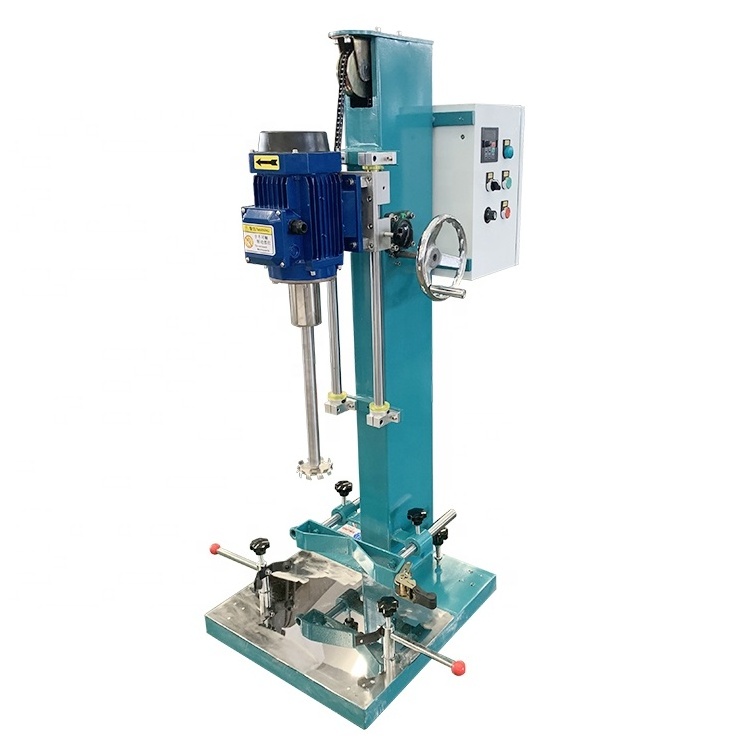

Working Principle
The disc is disk-shaped, With equidistance width up and down at the edge. Slant height at axial makes pushing action and produces non-uniform flow to material when dispersing(viscosity shearing force caused by velocity contrast). Disc runs at high and stable speed, produces shearing and crashing force to material. At normal operation, rotation of disc forms rolling circulation of material, and disc can be partial seen which indicates that max mechanical energy has input material. Material can get full circulating and stirring with the continuous rotation of disc. Granulates at material surface will drop to the circulation bottom, forming a 2.5-5 cm turbulence flow at the edge of disc. Material at this district will bear strong shearing and crashing force, highly dispersing.
| Type | IGF2.2 | IGF4 |
IGF5.5-7.5
(IGF11) |
IGF22
(IGF30) |
IGF37 | IGF45-75 | IGF90-200 | |
| Motor Power (kw) | 2.2 | 4 | 5.5-7.5(11) | 22(30) | 37 | 45-75 | 90-200 | |
| Speed (r/min) | 0-1450 | 0-1450 | 0-1450 | 0-1450 | 0-1200 | 0-1200 | 0-1000 | |
| Disc diameter (mm) | 150 | 200 | 250 | 350 | 400 | 450 | 600 | |
| Lift (mm) | 800 | 800 | 900 | 1200 | 12000-1500 | 1500-2000 | 1800-2800 | |
| Capacity (L) | 50 | 200 | 400-600 | 600-1000 | 1000-2000 | 1000-2500 | 5000-8000 | |
| Pump power (kw) | 0.55 | 0.55 | 0.75 | 1.5 | 1.5 | 2.2 | 3 | |
| Weight (kg) | 360 | 400 | 800 | 1500 | 1700 | 2100 | 2600-3000 | |
| External Dimensions | A | 1260 | 1260 | 1770 | 2140 | 2140 | 2600 | 2700 |
| B | 1340 | 1300 | 1700 | 2260 | 2260 | 2800 | 3000 | |
| C | 600 | 600 | 900 | 1100 | 1100 | 1200 | 1600 | |
| Wide | 460 | 460 | 580 | 800 | 800 | 1000 | 1000 | |
Coating:
Water-based coating,Solvent-based coating,Decorative coating,Latex paint;
Paint:
Car paint,Finish paint,Wood paint,Industrial paint;
Ink: Gravure printing ink,flexographic ink,offset printing ink,silk screen ink ,UV light solid ink,digital inkjet ink etc;
Pigment: Dye,color painted pigment,pen liquid,watercolor;
Electronic Materials: Battery diaphragm alumina,lithium iron phosphate,ceramic slurry,flame retardant;
Food Industry: chocolate syrup,paste etc.
Pesticide: pesticide suspension ,EC,EW,ME
Daily Chemical Industry: cosmetics,luquid soap,shower gel,liquid detergent etc;
Nano Materials: metal oxide,magnetic materials,paper industry,optoelectronic industry.
Ink: Gravure printing ink,flexographic ink,offset printing ink,silk screen ink ,UV light solid ink,digital inkjet ink etc;
Pigment: Dye,color painted pigment,pen liquid,watercolor;
Electronic Materials: Battery diaphragm alumina,lithium iron phosphate,ceramic slurry,flame retardant;
Food Industry: chocolate syrup,paste etc.
Pesticide: pesticide suspension ,EC,EW,ME
Daily Chemical Industry: cosmetics,luquid soap,shower gel,liquid detergent etc;
Nano Materials: metal oxide,magnetic materials,paper industry,optoelectronic industry.
Recommended Product
Packing
1.As per customer's specified requirements
2. Plastics film protection with standard sea packing
Shipping
1. Small parts: By express, TNT/ DHL/ UPS/ Fedex etc.
2. Full machine: By sea or By air
3.Choose the best suitable way as your need.
1.As per customer's specified requirements
2. Plastics film protection with standard sea packing
Shipping
1. Small parts: By express, TNT/ DHL/ UPS/ Fedex etc.
2. Full machine: By sea or By air
3.Choose the best suitable way as your need.
Our Services
All wear parts of IDA disperser and sand mill is available at any time you need. Our engineer will provide you with spare parts
scheme before sending the grinding mill to help you know when it is needed to change the parts so that to avoid any delay of production due to mill parts.
